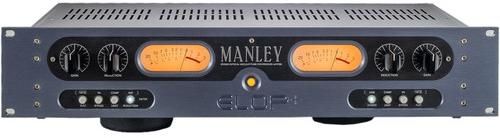

Manley Labs ELOP+ Electro-Optical Vacuum Tube Limiter/Compressor

BRAND: Manley Labs
|
MODEL: ELOP
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Manley Labs ELOP+ Electro-Optical Vacuum Tube Limiter/Compressor color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 384000.00
Today's Price: ₹
Price : Rs. 384000.00 9% off
Rs.346000 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Uses electro-optical compression with a tube-driven LED for smooth, musical compression.
  • All-tube signal path with a 12AX7 tube for warmth and character.
  • Precise input and output level controls for dynamic control.
  • Fully balanced I/O for compatibility with professional and consumer equipment.
  • Adjustable attack and release times for shaping compression.
  • Sidechain high-pass filter to avoid over-compression of low-end frequencies.
IN THE BOX
Sales Package Manley Labs ELOP+ Electro-Optical Vacuum Tube Limiter/Compressor
General
BrandManley Labs
ModelELOP
Colorblack
Tubes

5751 for gain, E88CC / 6922 white follower
Input Attenuator

Silent conductive plastic
Maximum Input Level

18 dBu or 4.8 V RMS @ 0.01% THD
Input Connector

2 x balanced transformer-coupled XLR inputs
Output Connector

2 x impedance-balanced XLR outputs
Input Impedance

14 kOhms
Output Impedance

150 Ohms
Maximum Output

22 Hz to 22 kHz bandwidth; 1 kHz sine
30 dBu @ 0.009% THD+N, 100 kOhm Load
20 dBu @ 0.015% THD+N, 600 Ohm Load
Headroom

Output, Referenced to 4 dBu: 26 dB
Frequency Response

-0.15 dB @ 10 Hz; -0.1 dB @ 20 kHz
THD

0.004% THD+N (1 kHz sine @ 4 dBu, 22 Hz to 22 kHz bandwidth)
Noise Floor

Limiter with Input Set to Unity Gain:
Bypass: -90 dBu
Engaged: -88 dBu
Dynamic Range

118 dB
Signal to Noise Ratio

92 dB (referenced to +4 dBu)
Maximum Gain

13 dB
CMRR

77 dB (BW: 22 Hz to 22 kHz, 4 dBu, 1 kHz sine)
Ratio

Limiter: 10:1
Compressor: 3:1
Limiter

Attack: 26 ms
Release: 200 ms
Maximum Limiting with 4 dBu, 1 kHz Sine: Approximately 12 dB
Compressor

Attack: 75 ms
Release: 200 ms
Maximum Compression with 4 dBu, 1 kHz Sine: Approximately 6 dB
High-Pass Filter

Sidechain: 80 Hz, internal user adjust jumper to 150 Hz
Dimension
Dimension48.3 x 8.9 x 17.8 cm
Weight5 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period2 year
