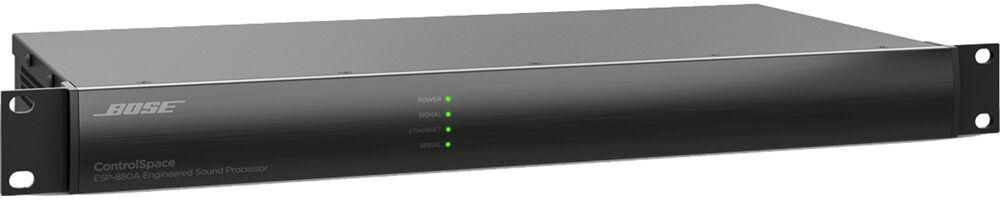

BOSE ControlSpace ESP-880A engineered sound processor

BRAND: BOSE
|
MODEL: ESP-880A
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black BOSE ControlSpace ESP-880A engineered sound processor color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 336010.00
Today's Price: ₹
Rs.336010 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Advanced DSP processing with Bose’s proprietary platform
  • 8 analog inputs and 8 analog outputs with optional digital I/O expansion
  • Onboard amplification with up to 8 channels of amplification
  • Customizable signal processing presets for various applications
  • Parametric EQ, dynamic processing, and advanced filters for sound shaping
  • Remote control and integration with Bose ControlSpace Remote app
  • Real-time diagnostics and advanced error reporting
  • Seamless integration with Bose ControlSpace Designer Software
IN THE BOX
Sales Package
(1) ControlSpace ESP-880A

(1) 3-pin Euroblock connector

(11) cable ties

(1) power cord

(10) 6-pin Euroblock connectors

(1) installation guide
General
BrandBOSE
ModelESP-880A
Colorblack
Channel Separation (Crosstalk)
< -105 dB at +4 dBu, 1 kHz input signal
Dynamic Range
> 115 dB, A-weighted, 20 Hz – 20 kHz, analog through
Frequency Response
20 Hz – 20 kHz (+0.3 dB/-0.1 dB)
THD+N
0.002% at +4 dBu (A-weighted, 20 Hz – 20 kHz)
Input Channels
8 balanced, mic/line
Connectors
(4) 6-pin Euroblock, 3.81 mm
Equivalent Input Noise
< -119 dBu at 64 dB gain (150 ? input, 22 Hz – 20 kHz)
Sensitivity Options
0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB, pre-gain
Input Impedance
12 k? at 1 kHz, with or without phantom power
Maximum Input Level
+24 dBu
Phantom Power
48 VDC, 10 mA, selectable per input
Channels
8 AmpLink out
Connectors
(1) RJ-45 AmpLink out
Connectors
(4) 6-pin Euroblock, 3.81 mm
Maximum Output Level
+24 dBu
Voltage Range, Analog
0 V – 3.3 V (5 V maximum)
Digital Input Voltage
0 V – 3.3 V (1.6 V threshold)
Outputs (Control)
(5) digital, 6-pin Euroblock, 3.81 mm
Output Voltage
High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull
Mains Connector
IEC 60320-C14 inlet
Mains Voltage
85–264 VAC, 50/60 Hz
AC Power Consumption
< 37 VA typical, over all mains voltages
Power Dissipation
22 W (75 BTU/hr, 19 kcal/hr)
A/D and D/A Converters
48 kHz / 24-bit
Maximum Calculation
3.6 GIPS / 2.7 GFLOPS
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Dimension
Dimension44 mm × 483 mm × 215 mm
Weight2.6 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
