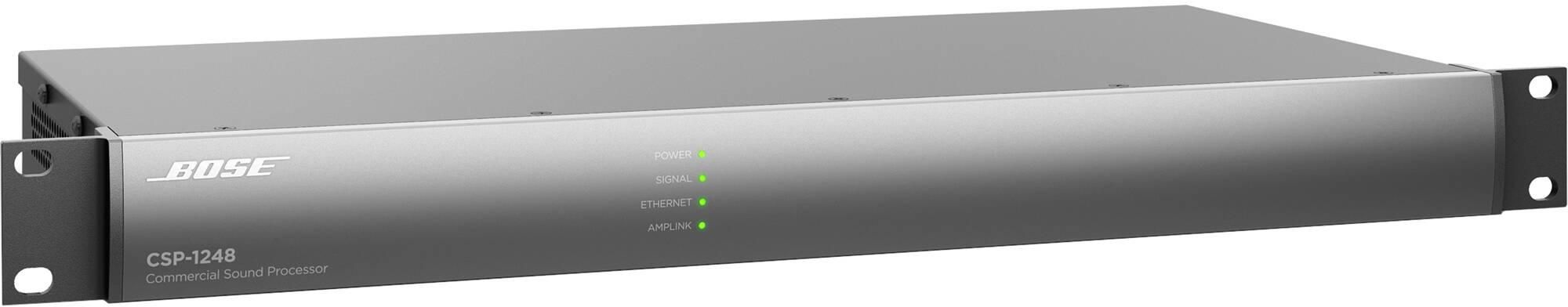

Bose CSP-1248 Commercial Sound Processor

BRAND: Bose
|
MODEL: CSP-1248
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Bose CSP-1248 Commercial Sound Processor color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 258210.00
Today's Price: ₹
Rs.258210 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Precision EQ, dynamic range control, and crossover for optimized sound
  • 8 inputs and 4 outputs for flexible system integration
  • Preset configurations for various commercial environments
  • Simple touchscreen interface for easy control and monitoring
  • Remote control and monitoring via network
  • Matrix mixing for routing inputs to different outputs
  • Compatible with Bose loudspeakers for optimal performance
  • Powerful DSP technology for sound fine-tuning
IN THE BOX
Sales Package Bose CSP-1248 Commercial Sound Processor
General
BrandBose
ModelCSP-1248
Colorblack
Channel Separation (Crosstalk)
< -105 dB at +4 dBu, 1 kHz input signal
Dynamic Range
> 115 dB, A-weighted, 20 Hz – 20 kHz, analog through
Frequency Response
20 Hz – 20 kHz (+0.3 dB/-0.5 dB)
THD+N
< 0.01% at +4 dBu (A-weighted, 20 Hz – 20 kHz)
Input Channels
12 (4 unbalanced, summed-mono + 8 balanced, mic/line)
Connectors
(4) RCA stereo pairs, (7) 3-pin Euroblock, (1) 4-pin Euroblock
Equivalent Input Noise
< -119 dBu at 64 dB gain (150 ? input, 22 Hz – 20 kHz)
Sensitivity Options
-70 dBu, -60 dBu, -50 dBu, 0 dBu, +4 dBu, -10 dBV, with selectable phantom power
Input Impedance
12 k? at 1 kHz, with or without phantom power
Maximum Input Level
+24 dBu at 0 dB gain (20 Hz – 20 kHz, THD+N < 0.3%)
Phantom Power
48 V, selectable per input, open circuit, 10 mA maximum per channel, 80 mA maximum across all channels
Channels
8 AmpLink out
Connectors
(1) RJ-45 AmpLink out
Channels
4 balanced, line
Connectors
(4) 3-pin Euroblock
Maximum Output Level
+24 dBu (22 Hz – 20 kHz, THD+N < 0.3%)
Output Impedance
66 ?
Digital Input Voltage
0 V – 3.3 V (1.6 V threshold)
Outputs (Control)
(1) digital, 2-pin Euroblock, 3.81 mm, detachable
Output Current
10 mA source, 100 mA sink (24 VDC maximum external supply voltage)
Output Voltage
High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull
Mains Voltage
85–264 VAC, 50/60 Hz
Mains Connector
IEC 60320-C14 inlet
Power Dissipation
22 W (75 BTU/hr, 19 kcal/hr)
Audio Latency
900 ?s, analog input to analog output
A/D and D/A Converters
48 kHz / 24-bit
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Dimension
Dimension44 mm × 483 mm × 215 mm
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period5 year
