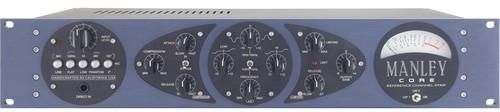

Manley Labs CORE Tube Reference Channel Strip

BRAND: Manley Labs
|
MODEL: CORE
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Manley Labs CORE Tube Reference Channel Strip color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 250588.00
Today's Price: ₹
Rs.250588 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • All-tube signal path with 12AX7 tubes for warmth and character
  • high-quality mic preamp with switchable +48V phantom power
  • Fully-featured compressor with adjustable attack, release, and threshold
  • 3-band EQ with selectable frequency bands
  • Front-panel instrument input for guitars, bass, and more
  • Insert point for external processing gear
  • Vintage design with modern performance
IN THE BOX
Sales Package
Manley Labs CORE Tube Reference Channel Strip
IEC Power Cable
General
BrandManley Labs
ModelCORE
Colorblack
Input / Output

1 x Mic Input: Balanced transformer coupled XLR at 1.2 k?
1 x Line Input: Balanced XLR at 10 k?
1 x Direct Input: Unbalanced 1/4" at 10 M?
1 x Main Output: Balanced XLR at 50 ?
1 x Direct Output: Balanced XLR at 50 ?
1 x Insert: 1/4" TRS send at 50 ? return at 13 k?
EQ Section

Baxandall Low Shelf: 90 Hz ±12 dB
Baxandall High Shelf: 12 kHz ±12 dB
Mid-Range Switchable Bell EQ: 100Hz to 1kHz or 1kHz to 10kHz ±10 dB
Compressor

Maximum Gain Reduction: 16 dB
Attack Time: 14 to 150 ms for 6dB compression
Release Time: 2.63 to 150 ms for 6dB compression
Limiter

Attack Time: 115 ?s
Release Time: 2.3 to 300 ms
Tubes

1 x 12AX7WA for gain
1 x 6922 White Follower output
Maximum Input

Maximum Mic Input
Low Gain Setting: -5 dBu or 435mV RMS @ 0.5% THD
High Gain Setting: -25 dBu or 44mV RMS @ 0.5% THD
Max Line Input
Low Gain Setting: +13 dBu or 3.5V RMS @ 0.5% THD
High Gain Setting: -8 dBu or 300mV RMS @ 0.5% THD
Direct Input
Low Gain Setting: +24 dBu or 12V RMS @ 0.5% THD
High Gain Setting: +17 dBu or 5.5V RMS @ 0.5% THD
Insert Return: +20 dBu or 7.8V RMS @ 0.5% THD
Maximum Output

Maximum Preamp Output (Insert Send): +35 dBu or 43V RMS @ 0.5% THD
Maximum Main Output: +20 dBu
Main Output Impedance: 50 Ohms
Direct Output Headroom (Referenced to +4 dBv): 31 dB
Main Output Headroom (Referenced to +4 dBv): 16 dB
Dynamic Range

>90 dB
Frequency Response (Audio)

10 Hz to 20 kHz ±0.5 dB
THD & Noise

THD & Noise (1kHz @ +4 dBm): 0.02% at Low Gain setting
Noise Floor

Noise Floor (Gain Set to Minimum): -70 dB wideband typical
Gain

Microphone Input: 40 or 60 dB
Line Input: 20 or 40dB
EQ and Limiter Section: 10 dB
Power

Universal Power Supply: 90 to 254 VAC
Power Consumption: 35 W
Mains Voltage Frequency: 50~60 Hz
Dimension
Dimension48 x 9.0 x 18 cm
Weight4 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
