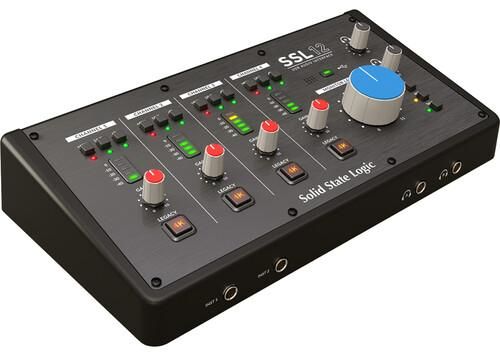

Solid State Logic SSL12 Audio Interface

BRAND: Solid-State-Logic
|
MODEL: SSL12
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Solid State Logic SSL12 Audio Interface color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 54000.00
Today's Price: ₹
Price : Rs. 54000.00 5% off
Rs.50999 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 12 inputs and 4 outputs for versatile connectivity
  • 4 mic preamps with +48V phantom power
  • USB-C connection for fast data transfer
  • Supports up to 24-bit/192kHz audio resolution
  • SSL 4K Mode adds analog warmth and character
  • Separate monitor and headphone outputs with independent controls
  • MIDI In and Out for external MIDI hardware
IN THE BOX
Sales Package
Solid State Logic SSL 12 USB Audio Interface
USB-C to USB-C Cable
USB-C to USB-A Adapter
General
BrandSolid-State-Logic
ModelSSL12
Colorblack
Channels of I/O

Analog:
4 Inputs / 8 Outputs at 192 kHz
ADAT:
8 Inputs
Maximum Sampling Rate

192 kHz / 32-Bit
Number of Microphone Inputs

4
Input Level Adjustment

4x Knob
Gain/Trim Range

Combo XLR-1/4" Mic Inputs:
62 dB (Mic Amp Gain)
Analog Audio I/O

4x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
4x 1/4" TRS Balanced Line Output
2x 1/4" TRS Balanced/Unbalanced Line/Headphone Output (Front Panel)
Phantom Power

48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O

1x TOSLINK Optical ADAT Input
Host Connection

1x USB-C (on Interface)
Host Connection Protocol

USB 2.0
MIDI I/O

1x DIN 5-Pin Input
1x DIN 5-Pin Output

Frequency Response

20 Hz to 20 kHz
Maximum Input Level

Combo XLR-1/4" Line Inputs:
+24 dBu
1/4" Hi-Z Inputs:
+14 dBu
Maximum Output Level

1/4" Line Outputs:
+24 dBu
Impedance

Mic Inputs:
1.2 Kilohms (Balanced, Mic Level)
Line Inputs:
15 Kilohms
Hi-Z Inputs:
1 Megohm
Headphone Outputs:
< 1 Ohm
Main Outputs:
75 Ohms (Balanced)
Dynamic Range

Mic Inputs:
111 dBA
Line Inputs:
111.5 dBA
Hi-Z Inputs:
110.5 dB
1/4" Monitor Outputs:
> 120 dBA
1/4" Headphone Outputs:
> 112 dBA
108 dBA
THD+N

Mic/Hi-Z Inputs:
0.0015% (-8 dBFS)
Line Inputs:
0.0005% (-1 dBFS at 1 kHz)
Monitor Outputs:
0.0005% (-1 dBFS at 1 kHz)
Headphone Outputs:
0.005% (Standard Mode, -1 dBFS at 1 kHz)
0.001% (High Sensitivity, -1 dBFS at 1 kHz)
0.001% (High Impedance, -1 dBFS at 1 kHz)
0.005% (Line Mode Balanced, -1 dBFS at 1 kHz)
EIN

Combo XLR-1/4" Mic Inputs:
-130.5 dBu A-Weighted
Sample Rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (AD/DA Conversion)
Sample Rate Conversion

On ADAT I/O/All Inputs
Bit Depths

32-Bit
Dimension
Dimension28.67 x 15.49 x 5.86 cm
Weight1.4 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
