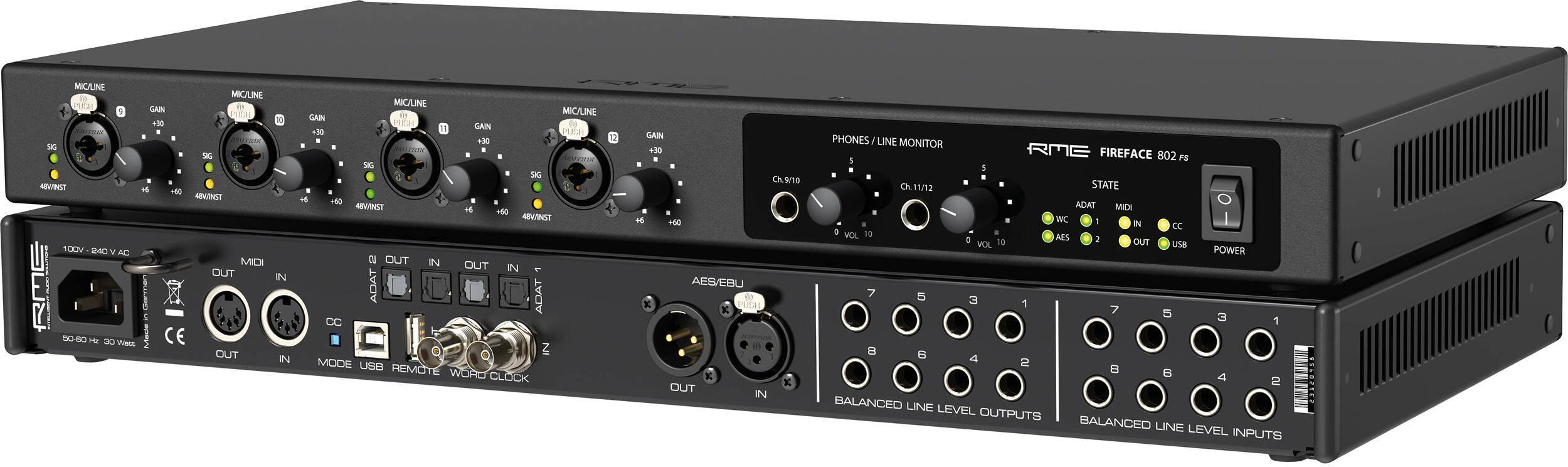

RME Fireface 802 FS 60-Channel USB-B Audio/MIDI Interface

BRAND: RME
|
MODEL: Fireface 802
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black RME Fireface 802 FS 60-Channel USB-B Audio/MIDI Interface color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 195000.00
Today's Price: ₹
Rs.195000 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Supports up to 60 input and output channels
  • 12 analog inputs and outputs for recording and playback
  • 4 high-quality mic/line/instrument preamps with clear and low-noise sound
  • 24-bit / 192 kHz audio quality for professional recordings
  • USB and FireWire connectivity for flexible computer connection
  • 2 ADAT optical ports for expanding channels with external gear
  • AES/EBU and S/PDIF digital I/O support
IN THE BOX
Sales Package
RME Fireface 802 FS 60-Channel USB-B Audio/MIDI Interface
USB Cable (6')
Toslink Optical Cable (6.6')
4 x Rubber Feet (Self Adhesive)
Power Cord
General
BrandRME
ModelFireface 802
Colorblack
Channels of I/O

30 Inputs / 30 Outputs
Maximum Sampling Rate

192 kHz / 24-Bit
Number of Microphone Inputs

4
Input Level Adjustment

4x Knob
Gain/Trim Range

Line Inputs:
0 to +12 dB
Mic Inputs:
54 dB
Analog Audio I/O

4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
8x 1/4" TRS Balanced Line Input
8x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output
Phantom Power

48 V, Selectable On/Off
Digital Audio I/O

2x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support, S/MUX4 Support)
2x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support, S/MUX4 Support)
1x XLR 3-Pin AES3 / S/PDIF Input
1x XLR 3-Pin AES3 / S/PDIF Output
Host Connection

1x USB-B (Class-Compliant)
Host Connection Protocol

USB 2.0
USB 1x USB-A (Remote)
Sync I/O

1x BNC Word Clock Input
1x BNC Word Clock Output
MIDI I/O

1x DIN 5-Pin Input
1x DIN 5-Pin Output
Frequency Response

1/4" Line Inputs:
8.9 Hz to 20.4 kHz -0.1 dB (at 44.1 kHz)
4.3 Hz to 45.2 kHz -0.5 dB (at 96 kHz)
3 Hz to 89 kHz -1 dB (at 192 kHz)
1/4" Line Outputs:
0 Hz to 20.2 kHz -0.1 dB (at 44.1 kHz)
0 Hz to 44.6 kHz -0.5 dB (at 96 kHz)
0 Hz to 77.5 kHz -1 dB (at 192 kHz)
1/4" Hi-Z Inputs:
2.5 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
2.5 Hz to 25 kHz -0.5 dB (at 96 kHz)
1.7 Hz to 36 kHz -1 dB (at 192 kHz)
Maximum Input Level

XLR Mic Inputs:
+10 dBu (Gain +6 dB)
-44 dBu (Gain +60 dB)
1/4" Line Inputs:
+19 dBu
1/4" Line Inputs:
+21 dBu (Gain +6 dB)
-33 dBu (Gain +60 dB)
Maximum Output Level

1/4" Line Outputs:
-10 dBv
1/4" Headphone Outputs:
+17 dBu at 0 dBFS
Headphone Output Power

1/4":
200 mW per Channel into 32 Ohms (Max, Unbalanced)
Impedance

XLR Mic Inputs:
3.4 Kilohms
1/4" Line Inputs:
10 Kilohms (Unbalanced)
10.6 Kilohm (Unbalanced)
1/4" Line Outputs:
75 Ohms
1/4" Hi-Z Inputs:
1 Megohm
1/4" Headphone Outputs:
2 Ohms
Word Clock Outputs:
10 Ohms
SNR

XLR Mic Inputs:
116 dBA
113 dB RMS (Unweighted)
1/4" Line Inputs:
118 dBA
116 dB (AES17)
1/4" Hi-Z Inputs:
116 dBA
113 dB RMS (Unweighted)
1/4" Line Outputs:
118.5 dBA (at +4 dBu, at High Gain)
116.5 dB (AES17, at High Gain)
118 dBA (at +4 dBu)
116 dB (AES17, at +4 dBu)
109 dBA (at -10 dBV)
107 dB (AES17, at -10 dBV)
1/4" Headphone Outputs:
118 dBA
116 dB (AES17)
THD

1/4" Line Inputs:
-120 dB / < 0.0001% (at -1 dBFS)
THD+N

1/4" Line Inputs:
< -110 dB / < 0.00032% (at -1 dBFS)
1/4" Line Outputs:
< -110 dB / < 0.00032%
Sample Rates

32 to 192 kHz
Bit Depths

24-Bit
Clocking

Word Clock:
Input Termination: 75 Ohms (Switchable)
Output Voltage: 5 V p-p
Jitter Suppression: > 50 dB
OS Compatibility

Computer: macOS 10.12 or Later / Windows 7 or Later
Mobile: iOS Only
Processor Requirement

Intel Core i5
Apple M1
AC Input Power

100 to 240 VAC, 50 / 60 Hz
Power Consumption

22 W (Typical)
15 W (Idle)
Operating Conditions

41 to 122°F / 5 to 50°C up to 75% Humidity
Dimension
Dimension48.3 x 24.1 x 4.39 cm
Weight2.8 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
