  3. RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface
▲
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface image
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface image
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface image
▲

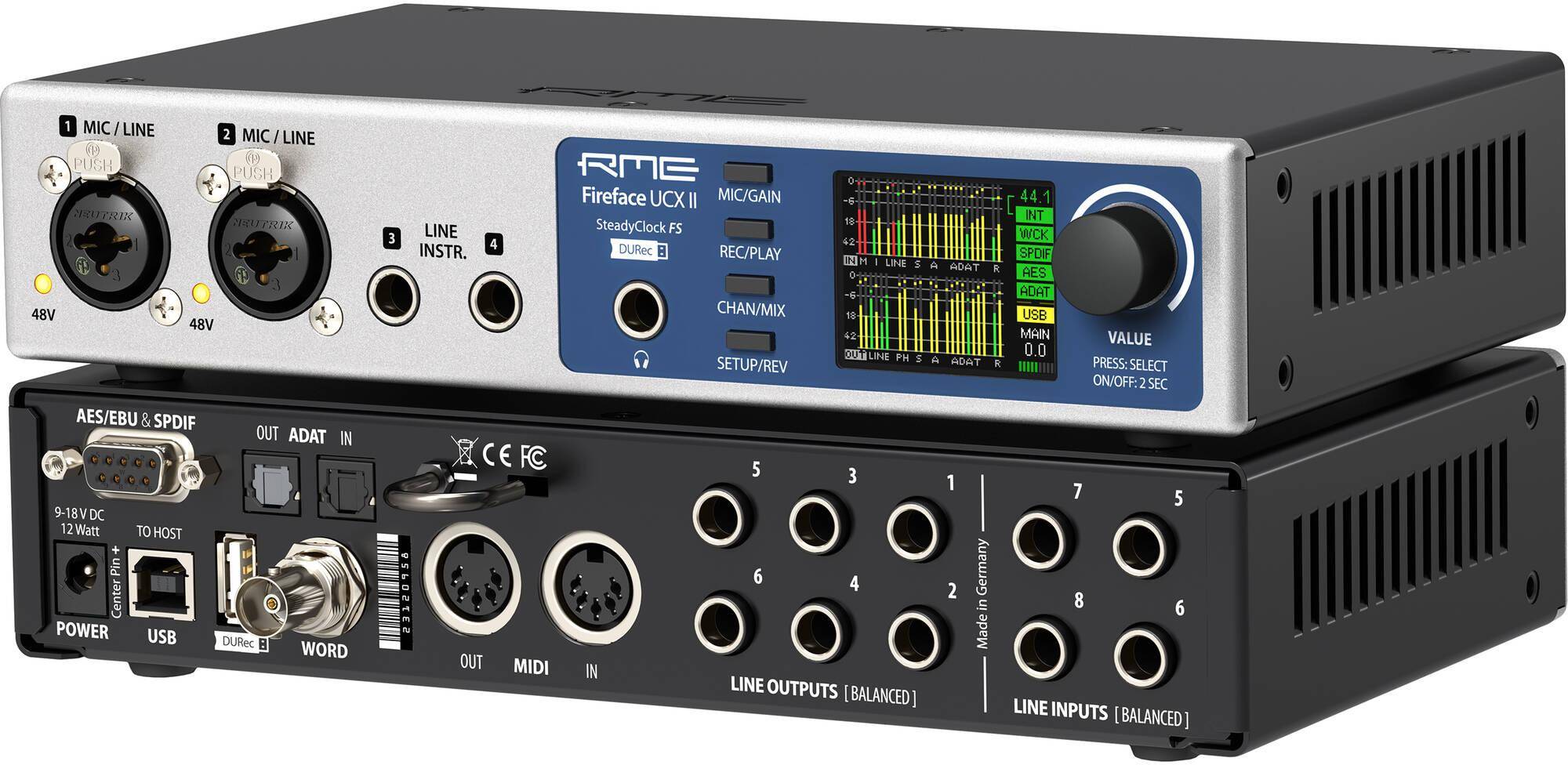

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface zoom image
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface zoom image

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface

BRAND: RME
|
MODEL: Fireface UCX
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 137500.00
Today's Price: ₹
Rs.137500 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 40 total channels with up to 20 inputs and 20 outputs
  • USB-B audio and MIDI interface for Mac, Windows, and Linux
  • 24-bit / up to 192 kHz high-resolution audio quality
  • 2 XLR combo mic/line inputs with phantom power and high gain
  • 2 front Hi-Z / line inputs for guitars and instruments
  • 4 balanced rear line inputs for external gear
IN THE BOX
Sales Package
RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface
USB Cable (6')
TOSLINK Optical Cable (6.6')
Digital Breakout Cable
External Switched Power Supply (12 VDC, 24W)
Power Cable
General
BrandRME
ModelFireface UCX
Colorblack
Display

Color
Channels of I/O

Analog:
8 Inputs / 8 Outputs
Digital:
12 Inputs / 12 Outputs
Built-In DSP

No
Maximum Sampling Rate

192 kHz / 24-Bit
Number of Microphone Inputs

2
Input Level Adjustment

1x Knob
Gain/Trim Range

1/4" Hi-Z Inputs:
+6 dB
Combo XLR-1/4" Mic/Line Inputs:
+75 dB
1/4" Line Inputs:
+12 dB
Analog Audio I/O

2x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel)
4x 1/4" TRS Balanced Line Input
6x 1/4" TRS Balanced Line Output
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power

48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O

1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output
1x XLR 3-Pin AES3 Input (on Breakout Cable)
1x XLR 3-Pin AES3 Output (on Breakout Cable)
1x RCA Coaxial S/PDIF Input (on Breakout Cable)
1x RCA Coaxial S/PDIF Output (on Breakout Cable)
Host Connection

1x USB-B
Host Connection Protocol

USB 2.0
USB (Non-Host)

1x USB-A (External Storage)
Sync I/O

1x BNC Word Clock Input or Output
MIDI I/O

1x DIN 5-Pin Input
1x DIN 5-Pin Output
Other I/O

1x DE-9/DB-9 Breakout Cable In/Out
Frequency Response

Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Outputs:
5 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
5 Hz to 45 kHz -0.5 dB (at 96 kHz)
5 Hz to 89 kHz -1 dB (at 192 kHz)
Maximum Input Level

Combo XLR-1/4" Mic Inputs:
+18 dBu (Min Gain)
-57 dBu (Max Gain)
Combo XLR-1/4" Line Inputs:
+24 dBu (Min Gain)
-51 dBu (Max Gain)
1/4" Line Inputs:
+19 dBu (Min Gain)
+1 dBu (Max Gain)
1/4" Hi-Z Inputs:
+13 dBu (Min Gain)
-5 dBu (Max Gain)
Maximum Output Level

Line/Headphone Outputs:
+19 dBu
Headphone Output Power

210 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance

Combo XLR-1/4" Mic Inputs:
5.4 Kilohms
Combo XLR-1/4" Line Inputs:
10 Kilohms (Balanced)
5 Kilohms (Unbalanced)
1/4" Line Inputs:
12 Kilohms (Balanced)
8 Kilohms (Unbalanced)
Line Outputs:
75 Ohms
Hi-Z Inputs:
1 Megohm
Headphone Outputs:
1 Ohm
Dynamic Range

Line Outputs:
115 dB (A-Weighted)
112 dB RMS (Unweighted)
SNR

1/4" Line Inputs:
115 dB (A-Weighted)
112 dB RMS (Unweighted)
THD

Inputs:
< -110 dB / < 0.00032%
Outputs:
< -108 dB / < 0.0004%
THD+N

Inputs:
< -104 dB / < 0.00063%
Outputs:
< -104 dB / < 0.00063%
EIN

Mic Inputs:
-128 dBu A-Weighted (150-Ohm Source, +60 dB Gain, 20 Hz to 20 kHz)
Sample Rates

Up to 192 kHz
Bit Depths

24-Bit
Latency

Zero-Latency Direct Monitoring
A/D Conversion:
0.11 ms at 44.1 kHz
A/D Conversion:
0.1 ms at 48 kHz
A/D Conversion:
0.057 ms at 88.2 kHz
A/D Conversion:
0.052 ms at 96 kHz
A/D Conversion:
0.034 ms at 176.4 kHz
A/D Conversion:
0.031 ms at 192 kHz
D/A Conversion:
0.13 ms at 44.1 kHz
Sync Sources

ADAT, AES3, Internal, S/PDIF, Word Clock
Clocking

Word Clock:
Input Termination: 75 Ohms
Input Voltage: 1 to 5.6 V p-p
Output Voltage: 5 V p-p
Lock Range: 27 to 200 kHz

AES:
Input Voltage: 0.3 V p-p
Output Voltage: 2.6 to 4.5 V p-p
Lock Range: 27 to 200 kHz
Jitter Suppression: > 50 dB (2.4 kHz)

S/PDIF:
Input Voltage: 0.3 V p-p
Output Voltage: 0.6 to 1.2 V p-p
Lock Range: 27 to 200 kHz
Jitter Suppression: > 50 dB (2.4 kHz)

ADAT:
Lock Range: 31.5 to 50 kHz
Jitter Suppression: > 50 dB (2.4 kHz)
OS Compatibility

Computer: macOS 10.12 or Later / Windows 7 or Later / Linux
Mobile: iPadOS Only
Processor Requirement

Intel Core i3 or Better
Required Hardware

Available USB 2.0 Port or USB 3.0 / 3.1/3.2 Gen 1 Port
USB Cable (Included)
Power Requirements

AC/DC Power Adapter (Included)
AC Input Power

100 to 240 VAC, 50 / 60 Hz
Power Consumption

13 W
Dimension
Dimension21.6 x 13 x 4.39 cm
Weight0.9 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
