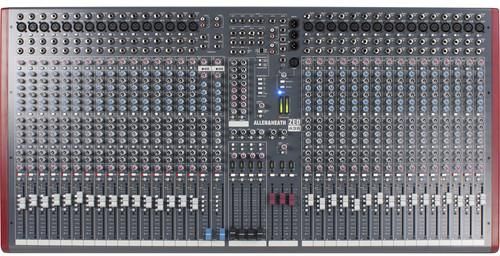

  3. Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer
▲
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer image
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer image
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer image
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer image
▲
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer zoom image
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer zoom image

Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer

BRAND: ALLEN-HEATH
|
MODEL: ZED-436
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 173080.00
Today's Price: ₹
Rs.173080 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 36 input channels: 32 mono, 2 stereo
  • DuoPre preamps with 69dB gain range
  • 4-band EQ with sweepable mids on mono channels
  • Six aux sends: 2 pre, 2 post, 2 switchable
  • Four subgroups for flexible routing
  • USB interface for 2-in/2-out recording/playback
  • Direct outs on all mono channels
IN THE BOX
Sales Package
Allen & Heath ZED-436 36-Channel 4-Bus Analog Mixer with USB Connection
USB Cable
Power Cable
General
BrandALLEN-HEATH
ModelZED-436
Colorblack
Number of Analog Input Channels
36
Number of Mic Preamps
32
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
4x Mono Bus/Subgroup Output
6x Mono Aux Send Output
2x Mono Matrix Output
1x Stereo Tape/Record Output
Mix Routing
Stereo Main Mix / Mono Aux Bus/Subgroup
Faders & Level Adjustment
3.9" / 100 mm Channel Fader
Meters
Main Meter:
2x 12-Segment LED
Bus Meter:
4-Segment LED
Channel Meter:
2-Segment LED
Gain/Trim Range
Mic Input:
-6 dB to +63 dB
Line Input:
-10 dB to +26 dB
Stereo Input:
-? to +10 dB
Fader:
-? to +10 dB
Return:
-? to +10 dB
Aux:
-? to +10 dB
Matrix:
-? to +6 dB
EQ
4-Band EQ
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Semi-Parametric)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Filters
High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute
Mute, PFL per Input Channel
Solo-in-Place/AFL, Mute per Bus
Mute per Master
Sample Rates
32 / 44.1 / 48 kHz
Bit Depth
16-Bit
Frequency Response
Mic Input to Main Output:
20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level
Mic Input:
+17 dBu
Line Input:
+30 dBu (Mono)
Insert Return:
+21 dBu
Noise Floor
Main Output:
-88 dB (32 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
-84 dBu (32 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
THD+N
Mic Input to Main Output:
0.004% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
0.014% at +30 dB Gain (1 kHz)
Line Input to Main Output:
0.005% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (+10 dBu, 1 kHz)
Analog Inputs
1x Stereo RCA Coaxial 2-Track Input
1x XLR 3-Pin Balanced Talkback Input
2x Stereo RCA Coaxial Unbalanced Aux/Line Input
32x 1/4" TRS Unbalanced Channel Insert
4x 1/4" TRS Unbalanced Subgroup Insert
2x 1/4" TRS Unbalanced Stereo Main Insert
1x 1/4" TRS Unbalanced Main Insert
32x XLR 3-Pin Balanced Mic Input
32x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
Analog Outputs
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
1x Stereo RCA Coaxial 2-Track Output
3x XLR 3-Pin Balanced Main Output
32x 1/4" TRS Balanced Direct Output
4x 1/4" TRS Balanced Subgroup Output
2x 1/4" TRS Balanced Matrix Output
6x 1/4" TRS Balanced Mono Aux Send
Phantom Power
+48 V (Selectable on Individual Inputs)
USB I/O
1x USB-B 1.1()
USB I/O Capacity
2x Input / 2x Output
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Dimension
Dimension113.5 x 12.9 x 56 cm
Weight22 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
