| IN THE BOX | |
|---|---|

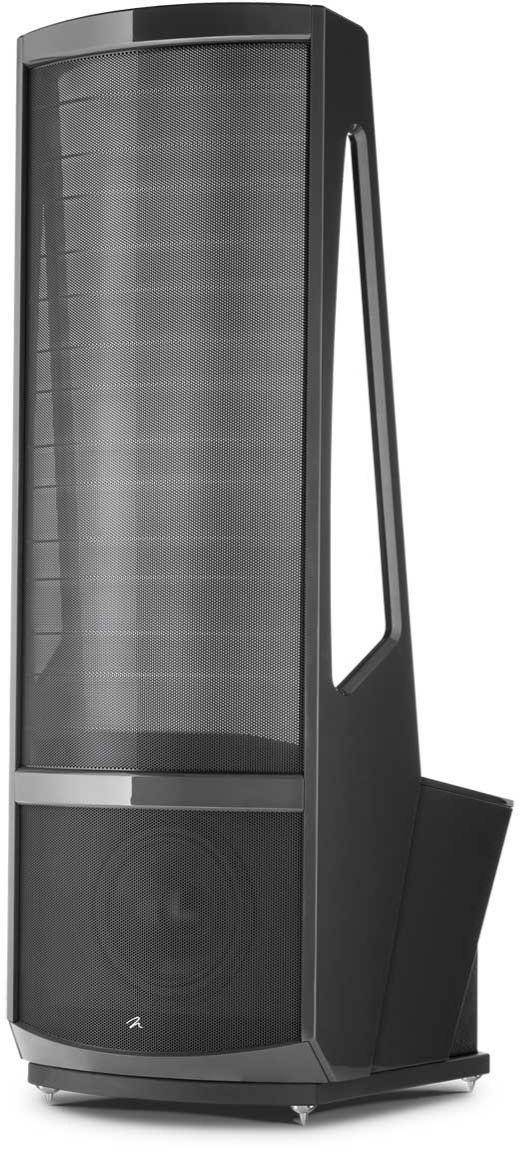

| Sales Package | Martin Logan Neolith Electrostatic-Hybrid Loudspeaker |
| General | |
|---|---|
| Brand | Martin-Logan |
| Model | Neolith |
| Color | black |
Frequency Response | 23–22,000 Hz ±3dB |
Recommended Amplifier Power | 20—1300 watts per channel |
Horizontal Dispersion | 30° |
Vertical Dispersion | 48" (122 cm) line source |
Sensitivity | 90 dB/2.83 volts/meter |
Impedance | Nominal: 4 ohms, 0.43 ohms @ 20 kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers |
Crossover Frequency | 60, 250–400 Hz |
High Frequency Transducer | XStat™ CLS™ electrostatic transducer » Panel Dimensions 48" x 22" (122 x 56cm) » Radiating Area 1056 in² (6,832 cm² ) |
Low Frequency Transducer | Rear: 15” (38.1cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly. Extensively vented triple shorting ring motor and 4-layer coil to eliminate compression and distortion. Front: 12” (30.5cm) round cast aluminum alloy frame, high excursion, rigid carbon fiber sandwich cone with long throw design, 3-inch (7.5cm) diameter copper-clad aluminum flat wire voice coil, and vented pole piece and under-spider opening to reduce power compression. |
Audio Controls | Bass Control: 0dB, -4dB, -8dB Distance Control: 3 meters (or less), 4 meters, 5 meters (or greater) |
Power Draw | Standby: 1W each Max: 15W each |
| Dimension | |
|---|---|
| Dimension | 189.9cm x 76.9cm x 87cm |
| Weight | 175 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
