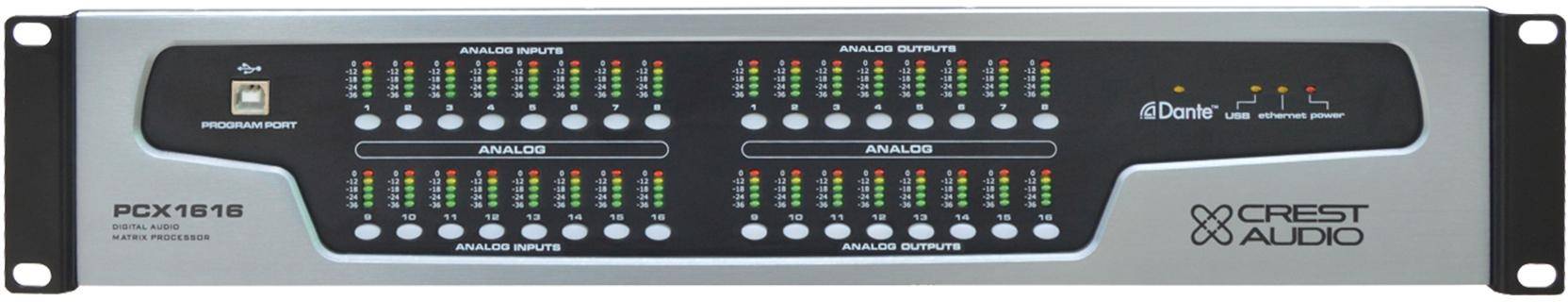

  3. Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System
▲
Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System image
Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System image
Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System image
▲
Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System zoom image
Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System zoom image

Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System

BRAND: Crest-audio
|
MODEL: PCX 1616
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 295000.00
Today's Price: ₹
Rs.295000 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 32×32 processing matrix (16 analog in/out, optional 16×16 Dante®)
  • 96 kHz sample rate, 32-bit SHARC® DSP, 24-bit A/D & D/A
  • Input processing: gain, mute, +48 V phantom, HP/LP filters, 5-band PEQ, polarity, gate, feedback control, Automix
  • Output processing: HP/LP filters, crossover, 5-band PEQ, gain, limiter, polarity, up to 680 ms delay, mute
  • Selectable crossovers: Butterworth, Bessel, Linkwitz-Riley (up to 8th order)
  • Built-in signal generator: sine, pink noise, white noise
  • 5-segment LED meters on all inputs/outputs with limit indication
IN THE BOX
Sales Package Crest Audio PCX® 1616 DSP-based Audio Matrix & Loudspeaker Management System
General
BrandCrest-audio
ModelPCX 1616
Colorblack
Form Factor
Rack-mountable, 2U chassis
Sample Rate & Converters
96 kHz sample rate; 24-bit Delta-Sigma A/D and D/A converters
DSP Architecture
32-bit SHARC DSP; floating-point processing
Analog I/O
16 balanced line-level inputs (Euroblock); 16 balanced line-level outputs (Euroblock)
Digital I/O (Optional Dante)
16 digital inputs and 16 digital outputs via optional Dante network card
Input Processing Features
Gain, Mute, Noise Gate, Feedback control, Phase/Polarity, High-Pass filter, 5-band PEQ, Automix channel, +48 V Phantom Power (analog inputs)
Output Processing Features
Gain, Mute, Compressor/Limiter, Phase/Polarity, Delay (up to 680 ms), 5-band PEQ, Crossover/Band-Pass filters, Mute
Crossover / Filter Types
Selectable: Butterworth, Bessel, or Linkwitz-Riley; Alignments from 1st order (6 dB/oct) to 4th order (24 dB/oct) (some listings reference up to 8th order/48 dB/oct)
EQ Filter Types
PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1, All-Pass2
Signal Generator
Internal sine, white noise, pink noise generator
Metering & Monitoring
5-segment LED meters on each input and output, with limit indication
Max Input/Output Level
+20 dBu (balanced XLR equivalents)
Dynamic Range
Input-to-output dynamic range > 110 dB (A-weighted)
Control Interfaces
Front-panel USB Type B; Rear-panel Ethernet (RJ-45); also supports RS-232, RS-485 serial control
Power Supply
Integrated PSU; accepts 90–260 VAC (some sources say 95–240 VAC), 50/60 Hz; max 20 W consumption; IEC power connector
Dimension
Dimension88 mm × 483 mm × 255 mm
Weight4.5 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
