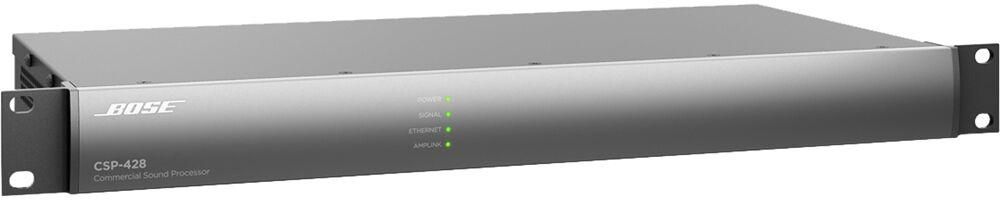

  3. BOSE CSP-428 commercial sound processor
▲
BOSE CSP-428 commercial sound processor image
BOSE CSP-428 commercial sound processor image
BOSE CSP-428 commercial sound processor image
BOSE CSP-428 commercial sound processor image
BOSE CSP-428 commercial sound processor image
BOSE CSP-428 commercial sound processor image
▲
BOSE CSP-428 commercial sound processor zoom image
BOSE CSP-428 commercial sound processor zoom image

BOSE CSP-428 commercial sound processor

BRAND: BOSE
|
MODEL: CSP-428
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black BOSE CSP-428 commercial sound processor color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 206246.00
Today's Price: ₹
Rs.206246 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Controls up to 4 independent audio zones
  • Advanced DSP for optimal sound quality
  • User-friendly graphical interface
  • Pre-configured settings for various applications
  • Multiple built-in audio sources (Bluetooth, USB, local inputs)
  • Individual zone volume control
  • Expandable for larger installations
  • Remote control via BOSE ControlSpace app
  • Automatic Gain Control for consistent audio levels
IN THE BOX
Sales Package
(1) 3-pin Euroblock connector

(11) cable ties

(1) 6-pin Euroblock connector

(1) 4-pin Euroblock connector

(2) 2-pin Euroblock connectors

(1) 9-pin Euroblock connector

(1) CSP-428

(1) AC power cord

(1) installation guide
General
BrandBOSE
ModelCSP-428
Colorblack
Channel Separation (Crosstalk)
< -105 dB at +4 dBu, 1 kHz input signal
Dynamic Range
> 115 dB, A-weighted, 20 Hz – 20 kHz, analog through
Frequency Response
20 Hz – 20 kHz (+0.3 dB/-0.5 dB)
THD+N
< 0.01% at +4 dBu (A-weighted, 20 Hz – 20 kHz)
Input Channels
4 (2 unbalanced, summed-mono + 2 balanced, mic/line)
Connectors
(2) RCA stereo pairs, (1) 3-pin Euroblock, (1) 4-pin Euroblock
Equivalent Input Noise
< -119 dBu at 64 dB gain (150 ? input, 22 Hz – 20 kHz)
Sensitivity Options
-70 dBu, -60 dBu, -50 dBu, 0 dBu, +4 dBu, -10 dBV, selectable phantom power
Input Impedance
12 k? at 1 kHz, with or without phantom power
Maximum Input Level
+24 dBu at 0 dB gain (20 Hz – 20 kHz, THD+N < 0.3%)
Phantom Power
48 V, selectable per input, open circuit, 10 mA maximum per channel, 80 mA maximum across all channels
Channels
8 AmpLink out
Connectors
(1) RJ-45 AmpLink out
Channels
2 balanced, line
Connectors
(2) 3-pin Euroblock
Maximum Output Level
+24 dBu (22 Hz – 20 kHz, THD+N < 0.3%)
Output Impedance
66 ?
Inputs (Control)
(8) digital, 9-pin Euroblock, 3.81 mm / (1) digital, 2-pin Euroblock, 3.81 mm (mute)
Digital Input Voltage
0 V – 3.3 V (1.6 V threshold)
Outputs (Control)
(1) digital, 2-pin Euroblock, 3.81 mm, detachable
Output Current
10 mA source, 100 mA sink (24 VDC maximum external supply voltage)
Output Voltage
High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull
Mains Voltage
85–264 VAC, 50/60 Hz
AC Power Consumption
< 30 W typical, over all mains voltages (power supply maximum < 45 W)
Power Dissipation
22 W (75 BTU/hr, 19 kcal/hr)
Audio Latency
900 ?s, analog input to analog output
Maximum Calculation
3.6 GIPS / 2.7 GFLOPS
Sample Rate / Bit Depth
48 kHz / 24-bit
Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)
Dimension
Dimension44 mm × 483 mm × 215 mm
Weight3.6 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period5 year
