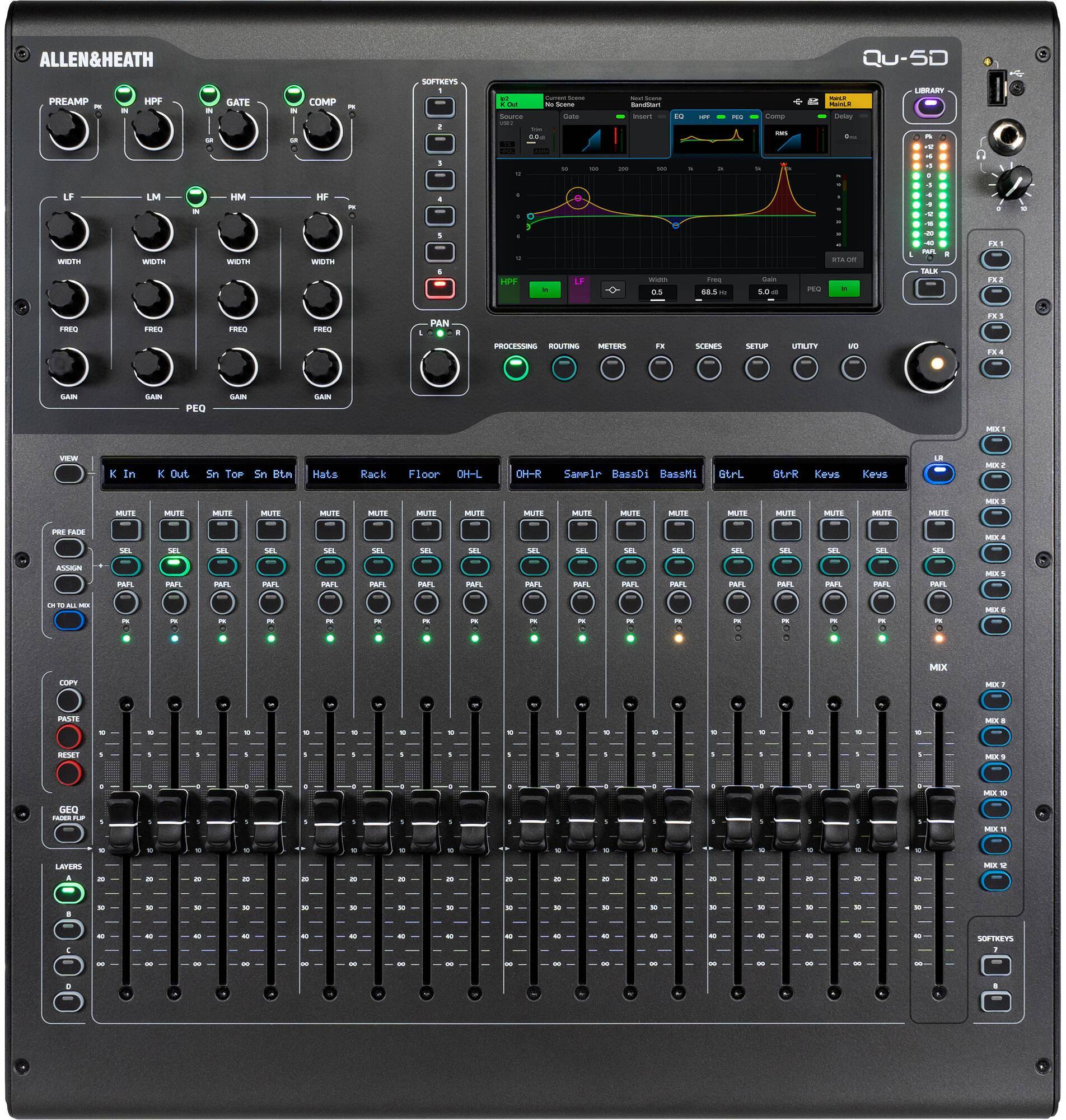

Allen & Heath QU-5D Digital Mixing Console with Dante zoom image
Allen & Heath QU-5D Digital Mixing Console with Dante zoom image

Allen & Heath QU-5D Digital Mixing Console with Dante

BRAND: ALLEN-HEATH
|
MODEL: QU-5D
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Allen & Heath QU-5D Digital Mixing Console with Dante color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 194999.00
Today's Price: ₹
Rs.194999 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Premium mic/line preamps with high-performance converters
  • Built-in DEEP processing and multi-FX engines
  • 38 total inputs (32 mono/linkable + 3 stereo)
  • 12 mix buses, 4 matrix outputs, and main LR output
  • 16 combo XLR/jack mic/line inputs
  • 12 XLR outputs plus TRS and AES3 options
  • Built-in 16×16 Dante interface with EtherCon port
IN THE BOX
Sales Package Allen & Heath QU-5D Digital Mixing Console with Dante
General
BrandALLEN-HEATH
ModelQU-5D
Colorblack
Max I/O Capacity

36x Input / 12x Output
Number of Analog Input Channels

18 (16 Mono / 2 Stereo)
Number of Mic Preamps

16
Number of Analog Output Channels

12
Mix Routing

6x Mono Aux Send
6x Stereo Aux Send
Groups

6x Subgroup
Display

7" Touchscreen
Faders & Level Adjustment

17x 3.9" / 100 mm Fader
Meters

Main Meter:
2x 12-Segment LED
Channel Meter:
Single LED
Dynamic Processing

Input Channels:
Compressor, Gate
Master:
Compressor, Limiter
EQ

Input Channels:
4-Band Parametric
Solo/Mute

Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay

Adjustable Up to 682 ms
Sample Rates

96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth

Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Analog Inputs

1x XLR Talkback Input
16x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analog Outputs

12x XLR Balanced Output
2x 1/4" TRS Balanced Output
Phantom Power

+48 V
Digital I/O

1x etherCON Input/Output (Network)
1x XLR AES3 Output
1x etherCON Dante Input/Output
USB I/O

1x USB-A 2.0 (External Memory)
1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity

32x Input / 32x Output
Other I/O

1x RJ45 Control In/Out (Bi-Directional)
Max Multitrack Recording

32 Tracks
OS Compatibility

Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: Android/iOS
Input Power

100 to 240 VAC, 50 / 60 Hz
Operating Conditions

32 to 104°F / 0 to 40°C
Dimension
Dimension45 x 21.1 x 47.5 cm
Weight
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
