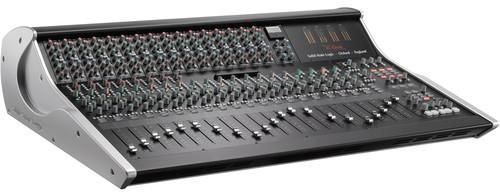

Solid State Logic XL-Desk Analogue Mixer

BRAND: Solid-State-Logic
|
MODEL: XL-Desk
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Solid State Logic XL-Desk Analogue Mixer color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 2851334.00
Today's Price: ₹
Rs.2851330 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Delivers the legendary SSL sound with clarity, depth, and punch.
  • 24 channels with mic preamps, EQ, and flexible routing options.
  • Equipped with SSL’s SuperAnalogue™ mic preamps for ultra-low noise and high-quality sound.
  • 4-band parametric EQ with fully sweepable mids for precise tonal control.
  • Dual bus architecture with a dedicated mix and group bus for flexible signal routing.
  • Multiple routing options, including insert points, direct outputs, and auxiliary sends/returns.
  • Integrated master section with output management, monitoring, and talkback.
IN THE BOX
Sales Package Solid State Logic XL-Desk Mixing Console with 16 E Series EQ Modules
General
BrandSolid-State-Logic
ModelXL-Desk
Colorblack
Connections

Power Supply: IEC320 3-pin connector, 100 - 240 VAC, 50 - 60 Hz
Analog I/O: 25-pin D-type socket, balanced, Zin > 10 kOhms, Zo ? 100 ohms, 3-pin XLR-M, balanced, Zo ? 100 ohms
Headphones: Stereo 1/4" jack socket, Zo ? 75 ohms
iJack: Stereo 3.5 mm jack socket, Zi ? 10 k
USB: 1 x type-B chassis socket (SSL diagnostic use only)
Performance

Maximum I/O Level: +18 dBu or 24 dBu

Frequency Response:
Line/Alt in to Channel Out (post): 20 Hz - 40 kHz (±0.2 dB)
Line/Alt in to Mix bus (single fader): 20 Hz - 40 kHz (±0.5 dB)
THD + N: < 0.05% (20 Hz - 20 kHz)

Noise
Line/Alt in to Channel Out (post): < -86 dBu (20 Hz - 20 kHz)
Line/Alt in to Mix bus (single fader): < -83dBu (20 Hz - 20 kHz)
THD + N: > +24 dBu (into 10 kOhms)
Electro Magnetic Compatibility

EN55103-1:2009, EN55103-2:2009
Environment: E4
Initial in-rush current: 3.2 A
5 sec in-rush current: 3.2 A
Braid-screened cables should be used where applicable
Star Quad cables should be used where applicable

EMC Performance Criteria
Line level inputs and outputs
Measure at mid-gain, noise <-56 dBu
Environmental

Temperature Operating: +41 to 86 deg F (+5 to 30 deg C)
Non-operating:-3 to 122 F (-20 to 50 deg C)
Max. gradient: 59 F (15 deg C/hour)
Relative Operating: 20 to 80%
Humidity Non-operating: 5 to 90%
Max. wet bulb: 84.2 deg F (29 deg C), (non-condensing)
Vibration Operating: < 0.2 G (3 - 100 Hz)
Non-operating: < 0.4 G (3 - 100 Hz)
Shock Operating: < 2 G (10 ms max.)
Non-operating: < 10 G (10 ms max.)
Altitude Operating: 0 to 3000 m
Non-operating (above sea level): 0 to 12000 m
Power

< 300 watts
Dimension
Dimension1015 x 251 x 812 mm
Weight40.6 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
