IN THE BOX | |
---|---|

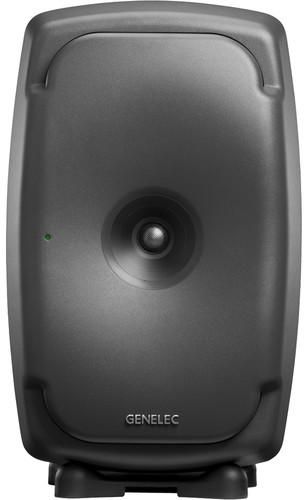

Sales Package | Genelec 8361A SAM Studio Monitor (Black Finish) Mains Power Cable GLM Network Cable (16.4" / 5m) |
General | |
---|---|
Brand | Genelec |
Model | 8361A |
Color | black |
Number of Included Monitors | Single Monitor |
Enclosure | Bass-Reflex/Ported, Shielded |
Total Power Output | 1000 W |
Tweeter | 1x 1" / 25.4 mm Metal Dome |
Midrange | 1x 5" / 12.7 cm Cone |
Woofer | 2x 10.4" / 26.42 cm Oval Cone |
Amplifiers | HF: 150 W MF: 150 W LF: 250 W |
Frequency Range | 32 Hz to 43 kHz (-6 dB) |
Frequency Response | 38 Hz to 20 kHz ± 1.5 dB |
Maximum Sound Pressure Level (SPL) | 113 dB 103 dB |
Total Harmonic Distortion (THD) | 0.05% |
Maximum Input Level | +25 dBu (Balanced) |
Analog Input Sensitivity/Gain | +36 dB to -6 dBu (Continuously Variable) |
Self-Generated Noise | Less Than 5 dB (at 3' / 1 m) |
EQ | 1x LF Tilt: -2 to -6 dB at 800 Hz (2 dB Increments) 1x HF Tilt: 2 to -4 dB at 5 kHz (2 dB Increments) 1x Low-Mid Shelf: -4 dB at 160 Hz |
Crossover Frequency | Low-Pass: 320 Hz High-Pass: 2.8 kHz |
App-Based Signal Processing | GLM Software Adjustment Parametric Notch Filter Low Shelf EQ High Shelf EQ |
Maximum Sampling Rate | 192 kHz / 24-Bit |
Audio I/O | 1x XLR 3-Pin Balanced Input (10 Kilohms) |
Digital Audio I/O | 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output |
Network I/O | 2x RJ45 Ethernet |
AC Input Power | 100 to 240 VAC, 50/60 Hz |
Power Consumption | 16 W (Idle) 250 W (Maximum) |
Dimension | |
---|---|
Dimension | 357 x 593 x 347 mm |
Weight | 31.8 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 2 year |
