IN THE BOX | |
---|---|

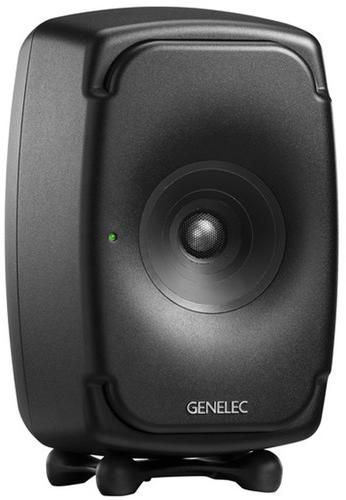

Sales Package | Genelec 8331 SAM Studio Monitor (Black Finish) Mains Power Cable GLM Network Cable (16.4" / 5m) |
General | |
---|---|
Brand | Genelec |
Model | 8331A |
Color | black |
Number of Included Monitors | Single Monitor |
Enclosure | Bass-Reflex/Ported, Shielded |
Total Power Output | 144 W |
Tweeter | 1x 0.7" / 19 mm Metal Dome |
Midrange | 1x 3.5" / 9 cm Cone |
Woofer | 2x 5.1" / 13 cm Oval Cone |
Amplifiers | HF: 36 W MF: 36 W LF: 72 W |
Frequency Response | 58 Hz to 20 kHz ± 1.5 dB |
Maximum Sound Pressure Level (SPL) | 110 dB |
Total Harmonic Distortion (THD) | 0.05% |
Maximum Input Level | +24 dBu |
Analog Input Sensitivity/Gain | +36 to -6 dBu (Continuously Variable) |
Protections and Limiting | Driver Protection |
Crossover Frequency | Low-Pass: 500 Hz High-Pass: 3 kHz |
App-Based Signal Processing | GLM Software Adjustment Parametric Notch Filter Low Shelf EQ High Shelf EQ |
Maximum Sampling Rate | 192 kHz / 24-Bit |
Audio I/O | 1x XLR 3-Pin Balanced Input (10 Kilohms) |
Digital Audio I/O | 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Out/Thru |
Network I/O | 2x RJ45 Ethernet |
AC Input Power | 100 to 240 VAC, 50/60 Hz |
Power Consumption | 0.5 W (Standby) 16 W (Idle) 250 W (Maximum) |
Mounting Points | 2x M6 (Rear Panel) 1x M10 (Bottom Panel) |
Dimension | |
---|---|
Dimension | 18.9 x 30.5 x 24.3 cm |
Weight | 6.7 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 2 year |
