| IN THE BOX | |
|---|---|

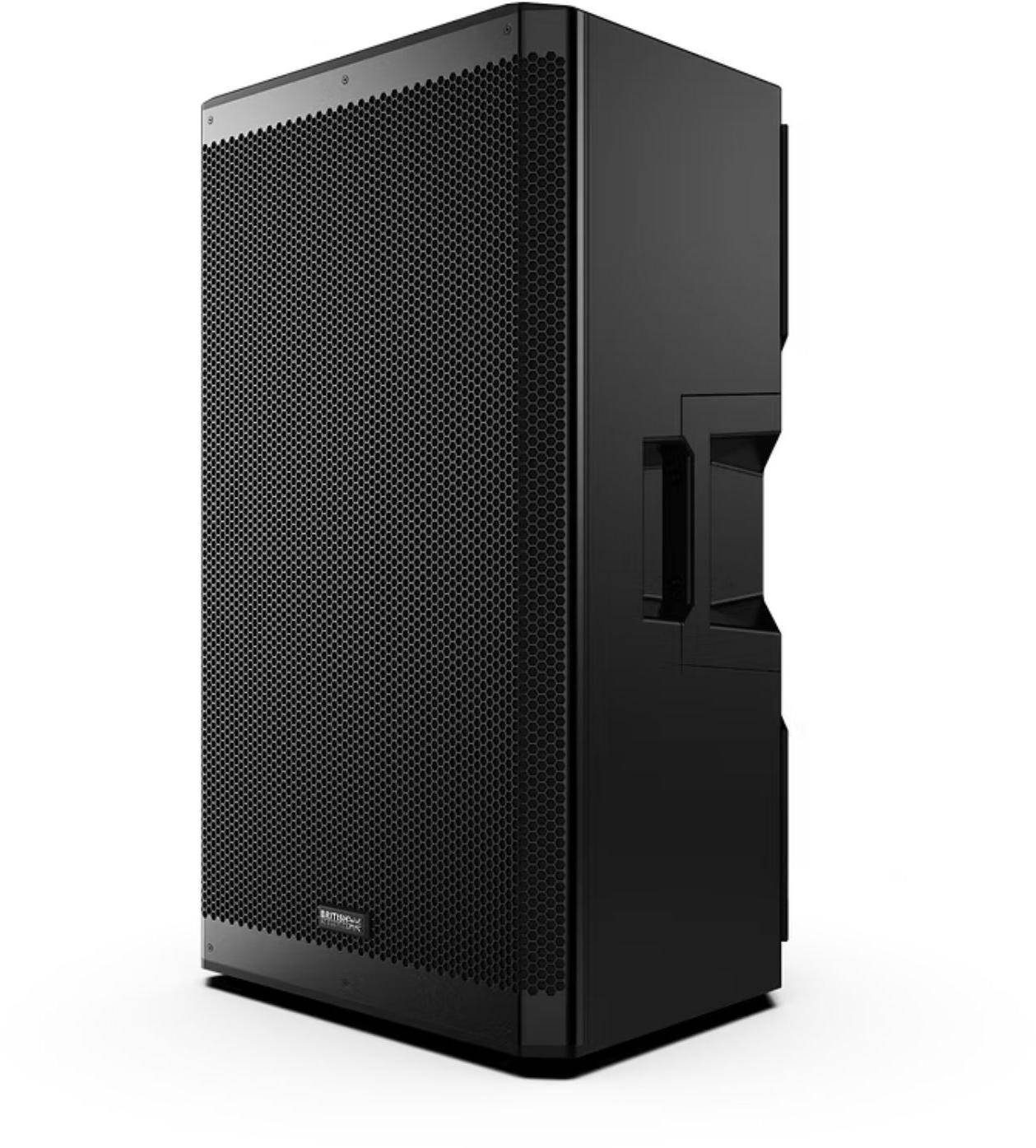

| Sales Package | British-Acoustics XP 12 H 12 inches Powered 2-Way Portable Speaker |
| General | |
|---|---|
| Brand | British-Acoustics |
| Model | XP 12 H |
| Color | black |
ACOUSTICAL SPECIFICATIONS | • Freq. Response (-3 dB) : 64 Hz - 20 kHz • Freq. Range (-10 dB) : 49 Hz - 20 kHz • H Dispersion : 90° (- 6 dB) • V Dispersion : 50° (- 6 dB) • Crossover : 1.8 kHz Active • Max Output : 122 dB, 128 dB Peak |
SYSTEM SPECIFICATIONS | • Recommended Subwoofers : XP 52 XT S, XP 58 XT S |
LF TRANSDUCER | • 12CT25D - 12" Low Frequency Driver • 500W AES, 2000W Peak • 2.5" Copper Voice Coil - Ferrite Magnet • Enhanced Airflow Path for minimal power compression |
HF TRANSDUCER | • 10CT 25 - 1.4" Exit HF Compression Driver • 50W AES, 200W Peak |
AMPLIFIER & DSP SPECIFICATIONS | • 1700W - Two Channel Class-H Amplifier • M1 Power Factor Crossover Module • Enhanced Amplifier efficiency • 3-Stage System protection process • 24-Bit Built-In DSP for Superior voicing • On-Board 2 Channel mixer Bluetooth • 2 x TRS Jack mic input, 1 x XLR line input, 1 x XLR line ouput & 1 x Bluetooth input • 1 x 16A Power-Con Input |
HOUSING | • Rugged ABS Enclosure • Solid Black Exterior Colour • Scratch Resistant Textured Finish • Perforated Black, Pressed Steel Grills • Integrated Handles on Either Side • M10 Flying Inserts • 35mm Pole Socket • Feet for use as stage monitor |
OPERATING PARAMETERS | • Operating positions: Can be deployed horizontally or vertically with the correct installation brackets or can be used as a monitor • Maximum permitted ambient temperature (Ta max) 40° C (104° F) • Minimum permitted ambient temperature (Ta min): 4° C (39.2° F) |
IP SPECIFICATIONS | • Standard Version : IP 43 - Standard protection against dust & splashes • Colour - Slate Grey |
| Dimension | |
|---|---|
| Dimension | 622 x 355 x 355 mm |
| Weight | 23.1 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
