IN THE BOX | |
---|---|

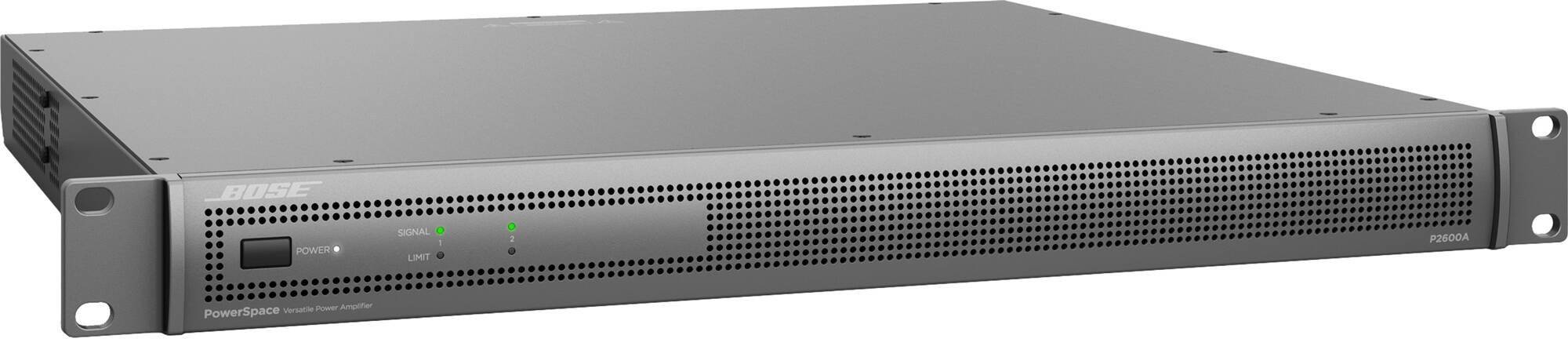

Sales Package | BOSE PowerSpace P2600A versatile power amplifier |
General | |
---|---|
Brand | BOSE |
Model | P2600A |
Color | black |
Channel Separation (Crosstalk) | > 80 dB at 1 kHz, > 65 dB at 20 kHz |
Gain, High-Impedance | 35 dB, 70V mode / 38 dB, 100V mode |
Maximum Peak Power, Symmetrical | 1200 W |
Number of Channels | 2 |
Rated Power, Symmetrical | 600 W |
Dynamic Range | ? 100 dB at rated power, A-weighted |
Gain, Low-Impedance | 35 dB |
Frequency Response | 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 ? / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V |
Power Class | Class D |
THD+N | < 0.04% at 1 kHz, 4–8 ?, 70V/100V |
Input Channels | 2 balanced |
Connectors | (1) 6-pin Euroblock |
Input Impedance | 10 k? |
Maximum Input Level | 22 dBu at 14 dBu sensitivity |
Sensitivity | -10 dBV, 4 dBu, 14 dBu |
Channels | 8 AmpLink in, 8 AmpLink thru |
Connectors | (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru |
Channels | 2 |
Connectors | (1) 4-terminal block |
Mains Connector | IEC 60320-C14 inlet |
Mains Voltage | 100–240 VAC (±10%), 50/60 Hz |
AC Power Consumption | 25 W auto-standby, 570 W maximum |
Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
Dimension | |
---|---|
Dimension | 44 mm × 483 mm × 420 mm |
Weight | 6.2 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
