The NS SW300 10-inches active subwoofer has been forged the design which combines excellent usability and beauty. In addition, we have introduced a new technology twisted flare port that achieves clear and tight bass. A subwoofer that matches a variety of speakers and interiors. High-power amplifier equipped with PWM digital drive and double feedback circuit new twist flare port that contributes to clear and tight bass. The built-in 10 inches active subwoofer power amplifier delivers a stable power output of 250W and minimizes the power consumption along with heat production.

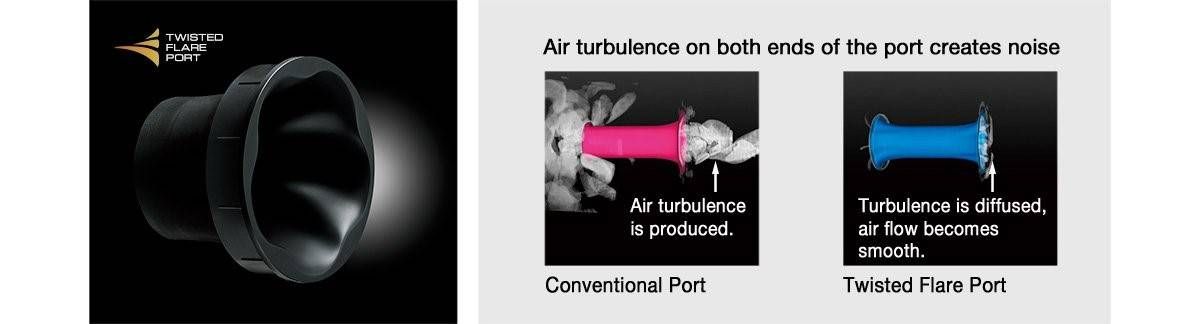

The all-new Twisted Flare Port leverages extensive experience in NS SW300 model of Yamaha design. The flared, slightly wavy shape disperses air vortices that form on the edge of the port, creating a smooth airflow. This reduces background noise not present in the original input signal, resulting in clear and precise bass reproduction. You can enjoy clear, tight and realistic heavy bass from the special effects sound of movies to the atmosphere of live venues.

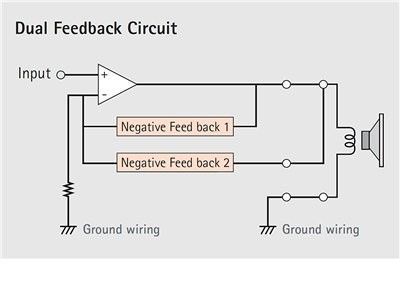

The Yamaha-NS SW300 speakerbuilt-in power amplifier provides highly efficient and stable 250W output power while minimizing power consumption and heat generation. No output filter coil is required, resulting in very low noise and distortion. Transient response at high speed is also excellent. A dual feedback circuit reduces distortion by applying feedback twice for a cleaner sound.

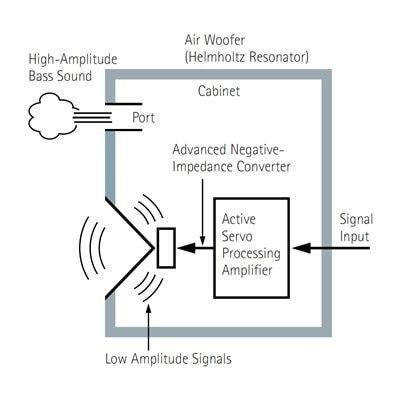

This system NSSW300 Developed by Yamaha, Advanced YST II Yamaha Active subwoofer Servo Technology II combines negative impedance and constant current principles to drive speaker cones with tighter control than previous versions. The system uses Advanced Negative Impedance Converter (ANIC) circuitry to dynamically optimize the effective speaker impedance to maintain excellent linearity. This allows for more stable and accurate low-end reproduction, not to mention high-quality sound.

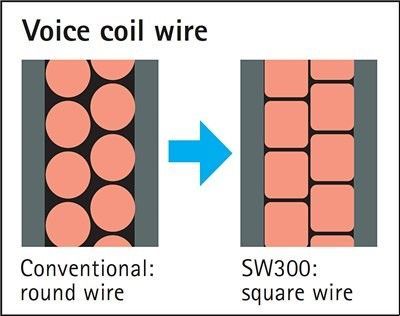

The Yamaha SW300 active subwoofer unit is used in a front-firing configuration. A square wire with a large surface area is used for the voice coil of the driver unit, and a higher magnetic flux density can be obtained by winding it at high density. It demonstrates high driving force and enables tight and deep bass reproduction.
The Yamaha NS 10-inches speaker energy and quantity buttons, that are used maximum often, are laid out at the front floor of the unit for ease of access. It is willing at an perspective of 45°, making it smooth to apply even if positioned at the floor. An LED indicator is above the energy button, so even in a dimly lit room it`s smooth to inform if it is on or off.

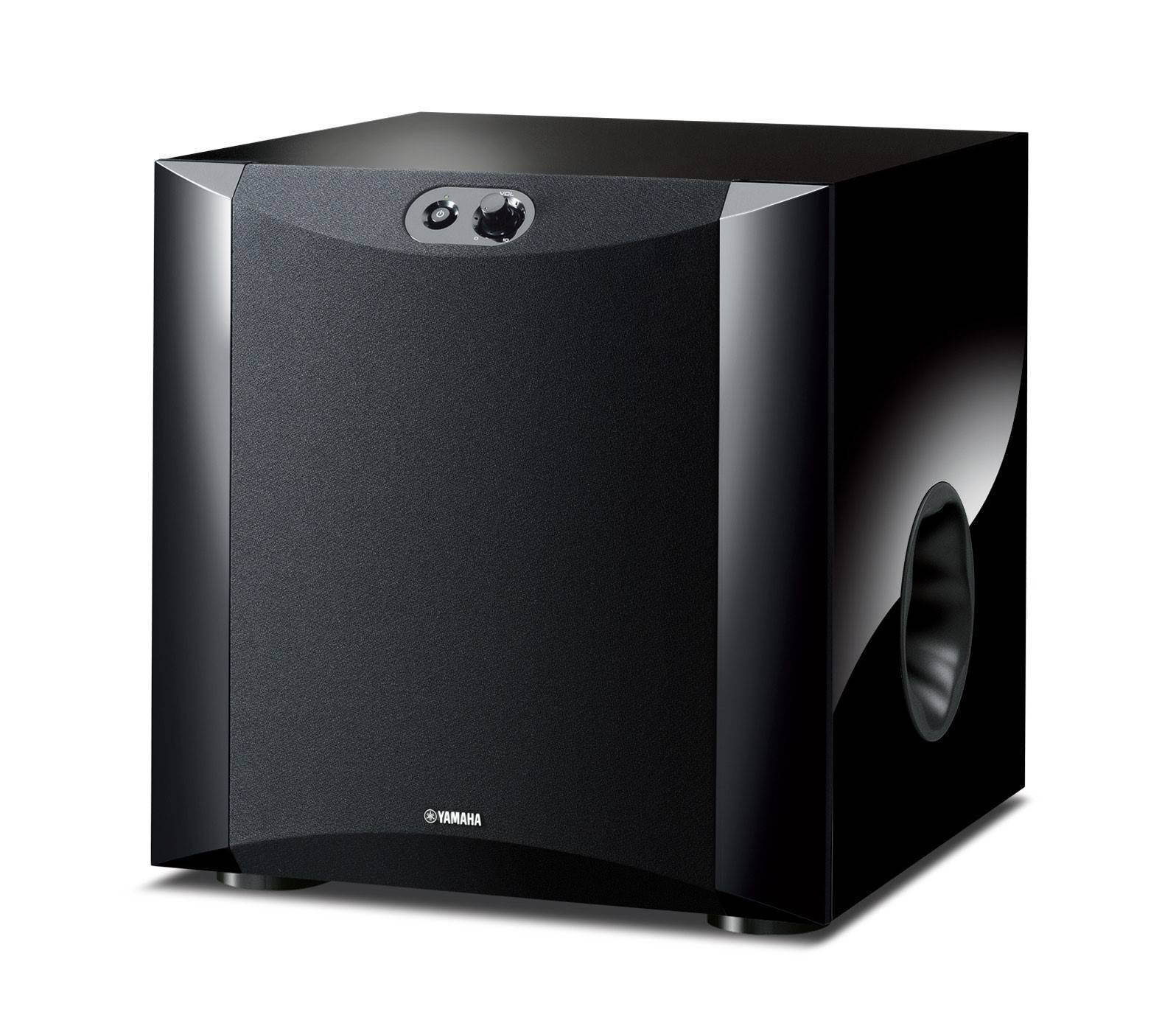

In addition to the beautiful round form of the front panel, the accent panels on both sides, and the clean appearance, the NS-SW300-Yamaha subwoofer that makes the sound powerful fits in various speaker systems. Available in a wide variety of colors, you can choose to match your interior
|IN THE BOX|
|Sales Package||Subwoofer and User Documentation|
|Driver||25 cm (10”) cone|
20 - 160 Hz
|High-Efficiency Power Amplifier||Yes|
|Twisted Flare Port||Yes|
|BASS (Bass Action Selector System)||Yes|
|Standby Power Consumption|
|Dimension||350 x 366 x 420 mm|
|Warranty Period||1 Year|
