IN THE BOX | |
---|---|

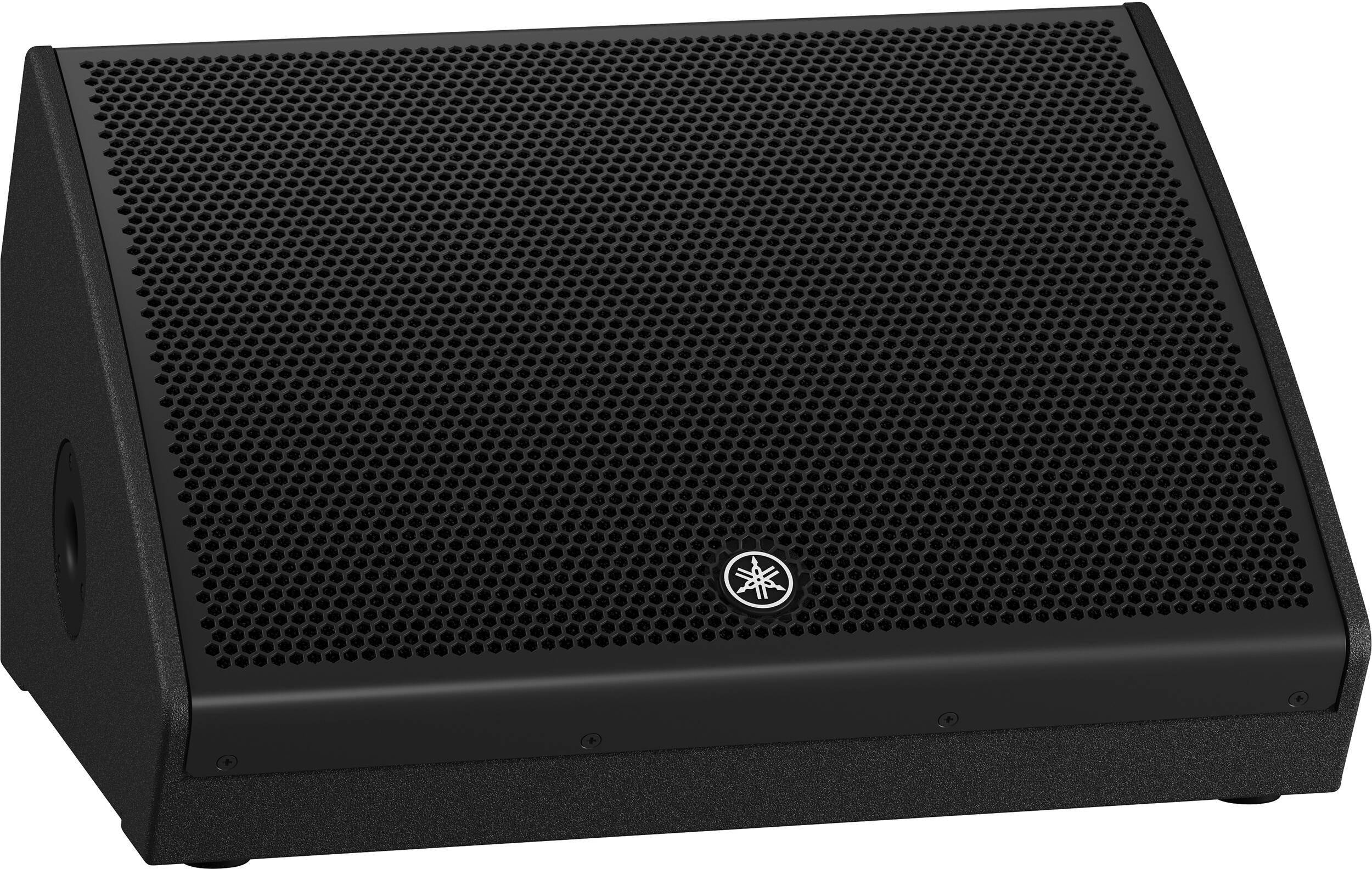

Sales Package | Yamaha DHR15M 2-Way Coaxial 1000W Active Floor Monitor / Loudspeaker |
General | |
---|---|
Brand | Yamaha |
Model | DHR15M |
Color | black |
Configuration | 2-Way |
Enclosure Type | Bass-Reflex |
Total Output Power | 465 W RMS / 1000 W Peak |
Amplifier Power Rating | Low Frequency (LF) 800 W Mid Frequency (MF) 200 W |
Amplifier Class | Class-D |
LF Driver | 1x 15" / 38 cm Woofer Voice Coil: 3" / 76.2 mm Magnet: Ferrite |
HF Driver | 1x 1.75" / 44.45 mm Horn-Loaded Compression Driver Throat: 1" / 25 mm Magnet: Ferrite |
Frequency Range/Response | 50 Hz to 20 kHz (-10 dB) |
Maximum SPL | 131 dB |
Coverage Angle | 65° H x 75° V |
Protections | DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal |
Crossover Frequency | 1800 Hz |
Audio I/O | 1x Combo speakON-1/4" TRS Line/Mic Input 1x Combo XLR-1/4" TRS Line Input 1x Stereo 2RCA Line Input 1x XLR 3-Pin Line Thru/Output |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
AC Power I/O | 1x IEC Input |
Power Consumption | 18 W (Idle) 74 W (1/8 Power) |
Mounting | 1 x 1.38" / 35 mm Pole Socket |
Dimension | |
---|---|
Dimension | 64.3 x 48 x 36.8 cm |
Weight | 23 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
