IN THE BOX | |
---|---|

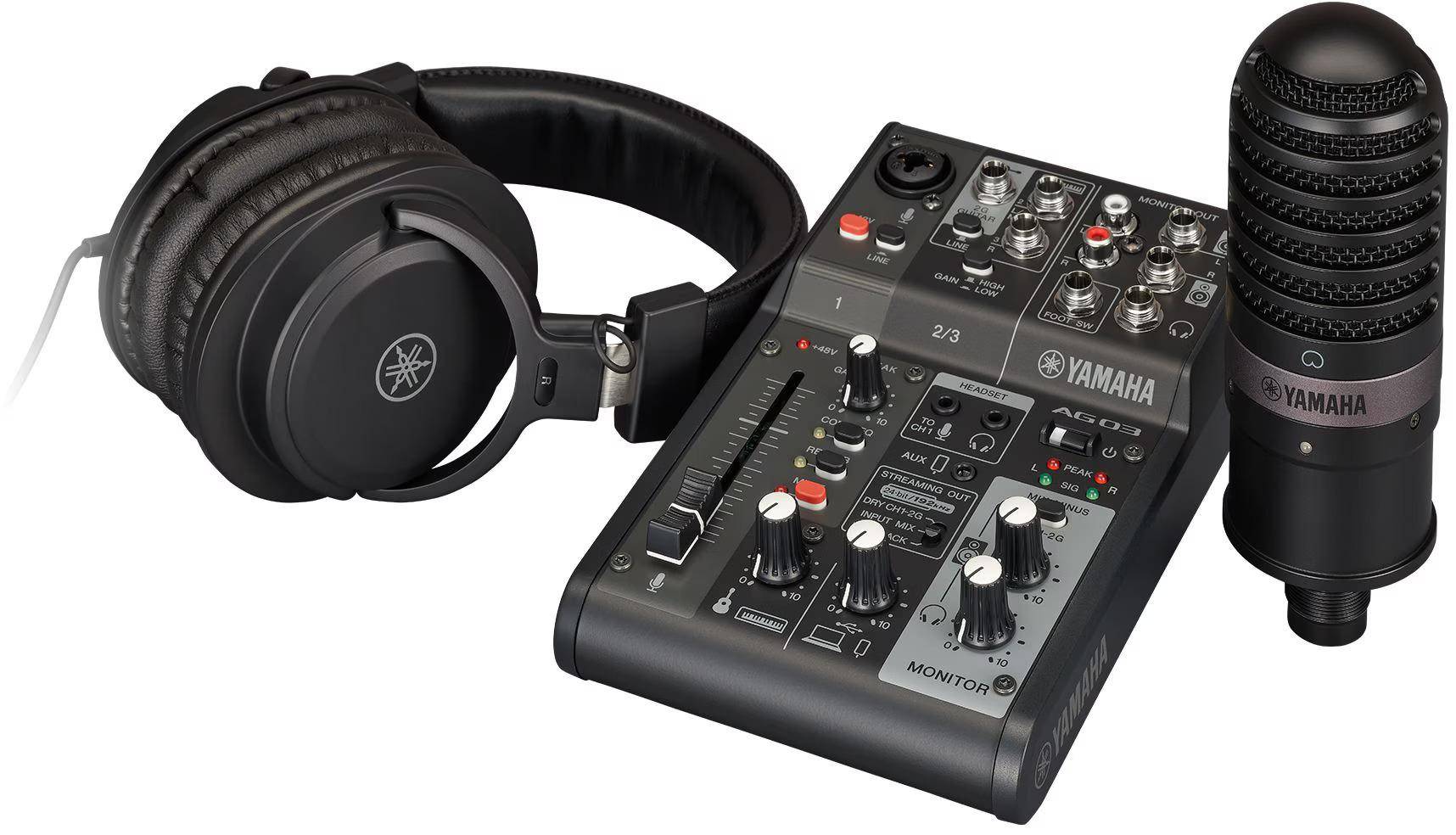

Sales Package | Yamaha AG03MK2 LSPK Live Streaming Pack Black, User documentation |
General | |
---|---|
Brand | Yamaha |
Model | AG03MK2 LSPK |
Color | Black |
Specifications | |
---|---|
Input Channels | Mono[MIC/LINE]:- 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously Stereo[LINE]:-1 - Stereo Line / Guitar Input (Mono) Smartphone:- 1 - 4-pole mini input/output (TRRS) USB:- 1 |
Output Channels | PHONES:- 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously Smartphone:- 1 - 4-pole mini input/output (TRRS) MONITOR OUT:- 2 - L/R Stereo: Phone, RCA USB:- 1 |
Bus | 1 Stereo |
Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) |
On-board processors | DSP:- COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
USB | USB Audio:- 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C USB DC Power input:- 1 - Type-C, 5 V DC, 900 mA |
Power requirements | 5 V DC, 900 mA |
Power consumption | Max. 4.5 W |
Microphone Unit | Back electret condenser type |
Polar Pattern | Cardioid |
Address Type | Side |
Frequency Response | 30 Hz - 20 kHz |
Max Input SPL | 130 dB (THD ? 1.0 ? at 1 kHz) |
Sensitivity | -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz) |
Connector | XLR |
Dimension | |
---|---|
Dimension | AG03MK2:- 126 x 63 x 201 mm YCM01(Microphone):- 55 x 166 mm |
Weight | AG03MK2:- 0.8 kg YCM01(Microphone):- 0.4 kg |
Warranty | |
---|---|
Warranty Type | Official manufacturer warranty |
Warranty Period | 1 Year |
