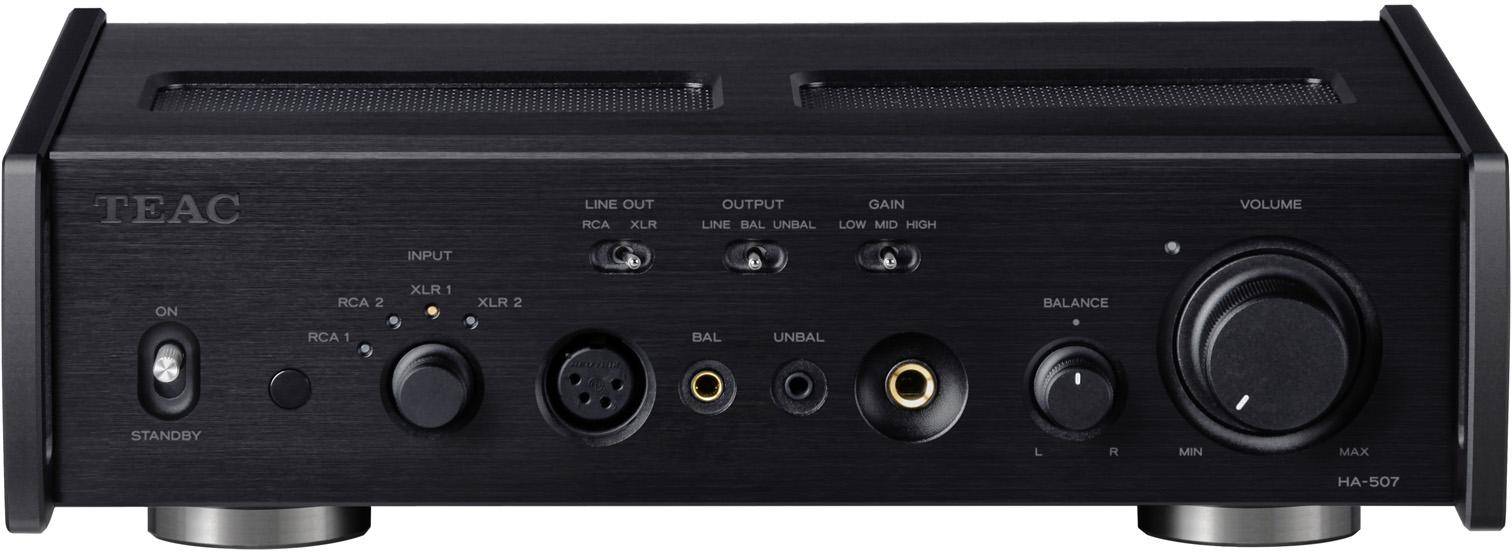

  3. TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier
▲
TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier image
TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier image
TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier image
▲
TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier zoom image
TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier zoom image

TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier

BRAND: TEAC
|
MODEL: HA-507
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 232600.00
Today's Price: ₹
Rs.232600 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Unbalanced headphone outputs: 6.3 mm and 3.5 mm
  • Switchable gain levels for optimal headphone matching
  • High-precision TEAC QVCS volume control with ultra-fine steps
  • Fully balanced and unbalanced analog inputs and outputs
  • High-current TEAC HCLD 2 line driver circuit
  • Discrete, low-noise power supply with toroidal transformer
IN THE BOX
Sales Package TEAC HA-507 Pure Analog Headphone Amplifier / Preamplifier
General
BrandTEAC
ModelHA-507
Colorblack
Analog audio inputs
Connectors XLR connectors × 2 pairs (L/R), RCA connectors × 2 pairs (L/R)
Input impedance XLR: 40 k? RCA: 20 k?
Maximum input signal voltage XLR: 6 Vrms, RCA: 3 Vrms
Analog audio outputs
Connectors XLR connectors × 1 pair (L/R), RCA connectors × 1 pair (L/R)
Output impedance XLR: 50 ? RCA: 100 ?
Maximum output voltage XLR: 7 Vrms, RCA: 3.5 Vrms
Frequency response 10 Hz to 150 kHz (+1 dB/?4 dB)
S/N ratio 110 dB (A-Weight, 1 kHz)
THD+N 0.0006% (1 kHz, LPF: 20 kHz)
Headphone outputs
Connectors
Standard 6.3mm (1/4") stereo jack 1
3.5 mm (1/8") stereo mini jack 1
4-pin XLR connector 1
4.4mm 5-pole stereo jack 1
Rated output
Unbalanced (UNBAL) 2.3 W + 2.3 W (into 32 ?) / 1.2 W + 1.2 W (into 100 ?) / 0.48 W + 0.48 W (into 300 ?) / 0.25 W + 0.25 W (into 600 ?)
Balanced (BAL) 6.7 W + 6.7 W (into 32 ?) / 4.2 W + 4.2 W (into 100 ?) / 1.8 W + 1.8 W (into 300 ?) / 0.95 W + 0.95 W (into 600 ?)
Applicable load impedance 16 to 600 ?
External control
Trigger input 1
(3.5mm mono mini jack) Input level 12 V, 1 mA
Trigger output 1 (3.5mm mono mini jack)
General
Power supply AC 220–230 V
Power consumption 30 W
Standby power 0.3 W
Operating temperature range +5°C to +35°C
Operating humidity range 5% to 85% (no condensation)
Storage temperature range ?20°C to +55°C
Audio performance
Frequency response 10Hz to 150kHz (+1/–4dB)
THD +N 0.0006? (1kHz, LPF: 20kHz)
S/N ratio 110dB (A-weight, 1kHz)
Dimension
Dimension290 × 84.5 × 243.9 mm
Weight4.6 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
