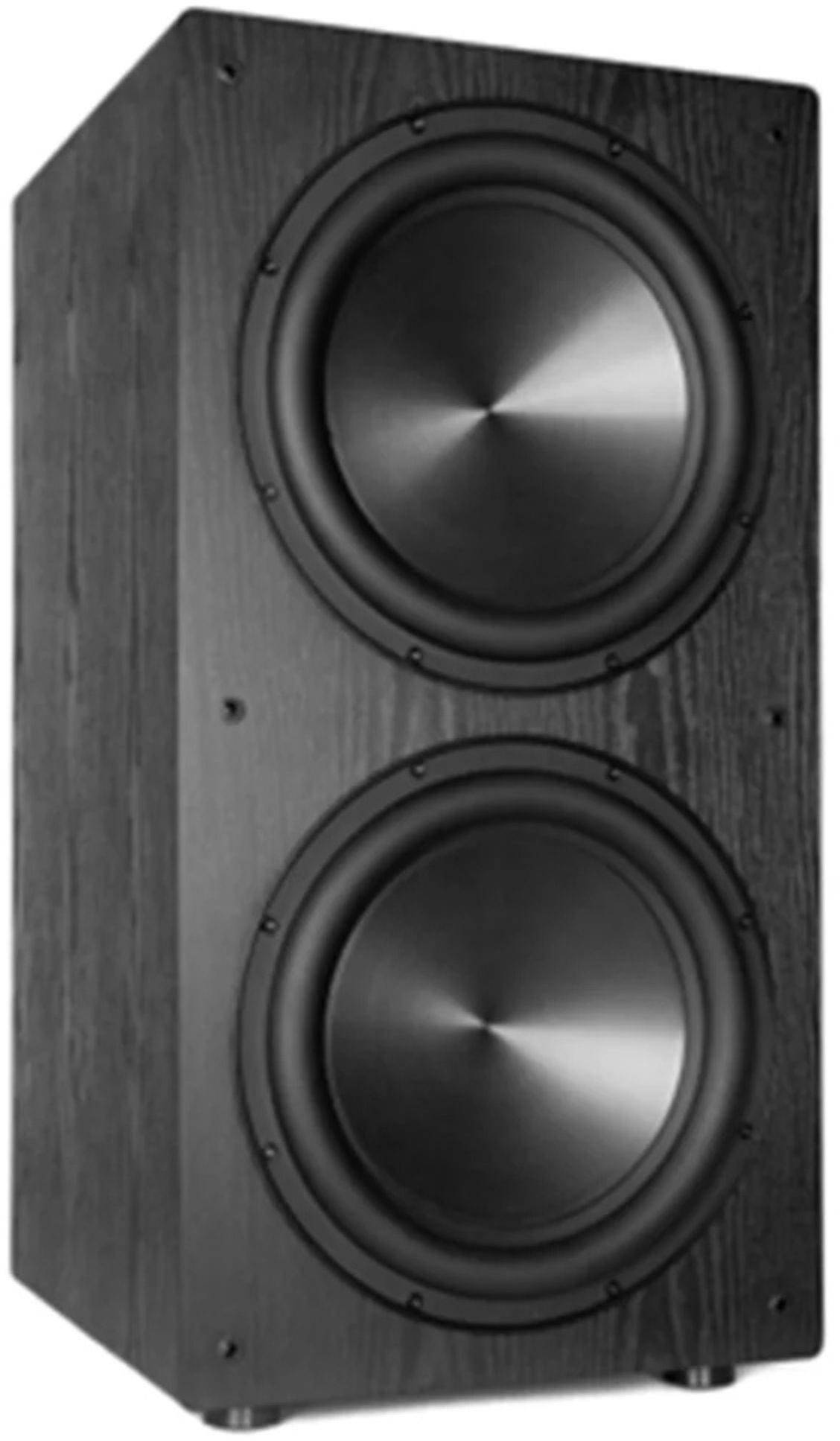

Rythmik Audio E22 Direct Servo subwoofer

|
MODEL: E22
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Rythmik Audio E22 Direct Servo subwoofer color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 299576.00
Today's Price: ₹
Rs.299576 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Real-time cone motion correction for better control
  • Adjustable bass extension and excursion settings
  • Selectable low-pass crossover (12 dB / 24 dB per octave)
  • Optional parametric EQ for room tuning
  • Phase control for better system integration
  • Built-in rumble filter to reduce unwanted ultra-low frequencies
IN THE BOX
Sales Package Rythmik Audio E22 Direct Servo subwoofer
General
BrandRythmik-Audio
ModelE22
Colorblack
Driver Two 12" high excursion with custom sensing coil
Driver materials
Aluminum cone with rubber surround
Cast aluminum basket
aluminum flux de-modulation shorting rings
Amplifier 800WRMS class D (dual Hypex Ucd modules) patented servo controlled
Input Impedance 33kohm for RCA inputs; 10kohm for XLR inputs
Frequency Response
14 - 200 Hz (-2 dB @ 14 Hz) with LFE inputs in A370PEQ3/XLR2/XLR3
14 - 100 Hz (-2 dB @ 14 Hz) with LINE IN inputs in all models
Crossover slope Selectable 12 or 24 dB / octave
Crossover range (Low pass) 25 - 120 Hz
Rumble Filter (High pass ) 20 Hz 18 dB / octave
Phase response 90 degrees phase shift at 20 Hz with 14hz high damping rumble filter OFF
Phase adjustment 0 - 180 degrees continuously variable
Bass damping factor high (Q=0.5), med (Q=0.7), and low (Q=1.1)
Standy power 13W (standby, red light), 29W(ON,green light)
Dimension
Dimension14-1/2"(W) x 28" (H )x 16-1/2" (D) with grille and amplifier knobs
Weight48.9 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
