| IN THE BOX | |
|---|---|

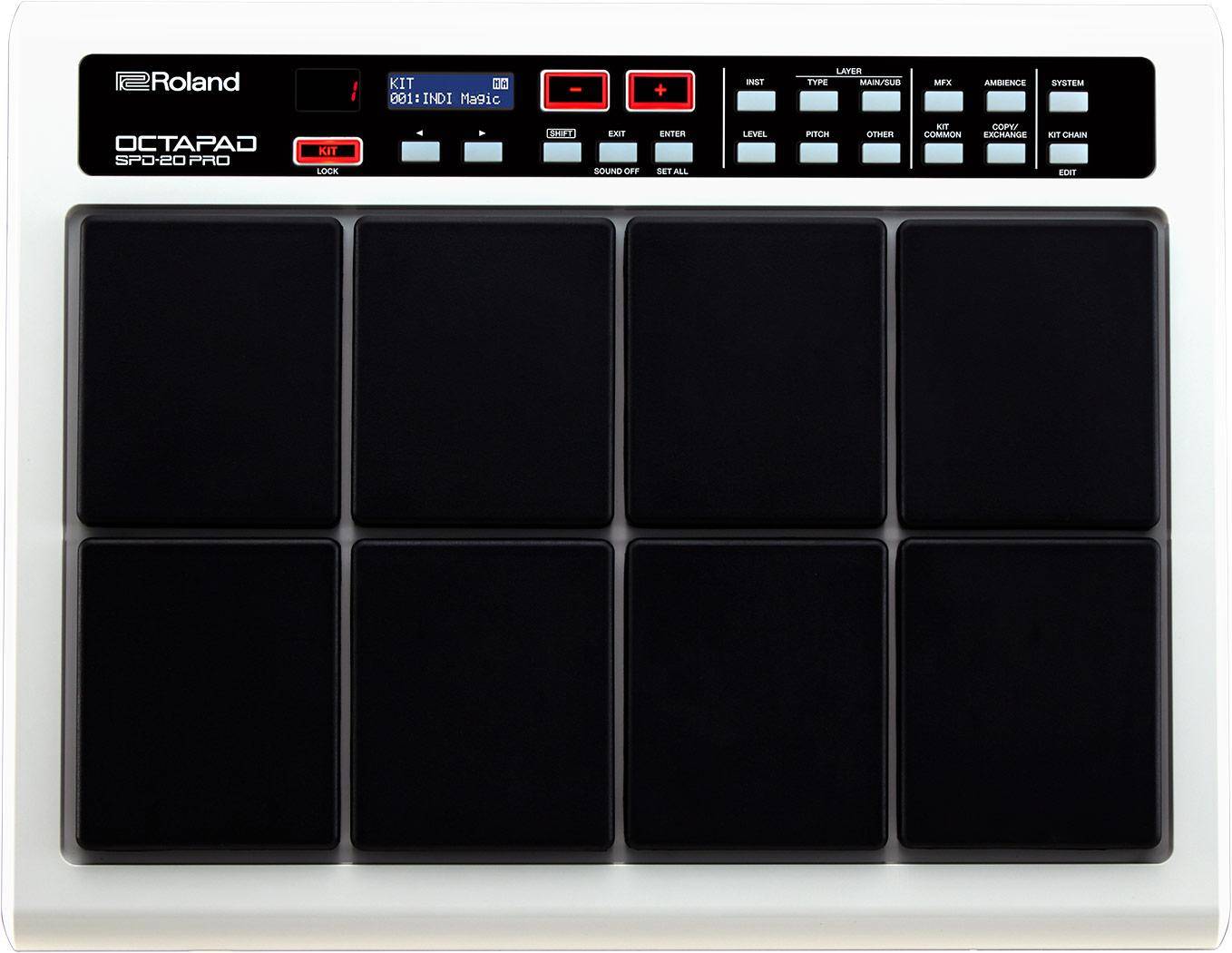

| Sales Package | Roland Octapad SPD-20PRO Digital Percussion Pad, Owner's Manual, AC Adaptor |
| General | |
|---|---|
| Brand | Roland |
| Model | OCTAPAD SPD-20 PRO |
| Color | black |
| Pads | Built-in Pads: 8 Four external trigger inputs are provided, allowing you to connect Pads. |
| Instruments | Instruments: 900 instruments or greater |
| Kits | 200 (Preset: 100) |
| Kit Chain | 16 chains (16 steps per chain) |
| Layer | 2 layers per pad 2 layers x 2(Head/Rim) per external Trigger |
| Instrument /Pad Parameters | Volume Curve Coarse Tune Fine Tune Pedal Bend Decay Output Layer EQ Pad comp Pad Mute Group Pad Link |
| Kit Effects | Ambience (5 Types) Kit EQ Kit Comp MFX : 3 systems, 38 types |
| Display | 16 characters 2 line (backlit LCD) 7 segments, 3 characters (LED) |
| Connectors | PHONES Jack: Stereo 1/4-inch phone type OUTPUT(L/MONO, R) Jacks: 1/4-inch phone type MIX IN Jack: Stereo 1/4-inch phone type EXTERNAL TRIGGER INPUT Jack : 1/4-inch TRS phone type x 4 HH CTRL Jack: 1/4-inch phone type FOOT SW Jack: 1/4-inch TRS phone type MIDI (IN, OUT) Connectors USB MEMORY port: USB A type |
| Power Supply | AC adaptor (DC 12 V) |
| Current Draw | 500 mA |
| Dimension | |
|---|---|
| Dimension | 450(W) x 350 (D) x 72 (H) mm |
| Weight | 3.7 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 2 year |
