IN THE BOX | |
---|---|

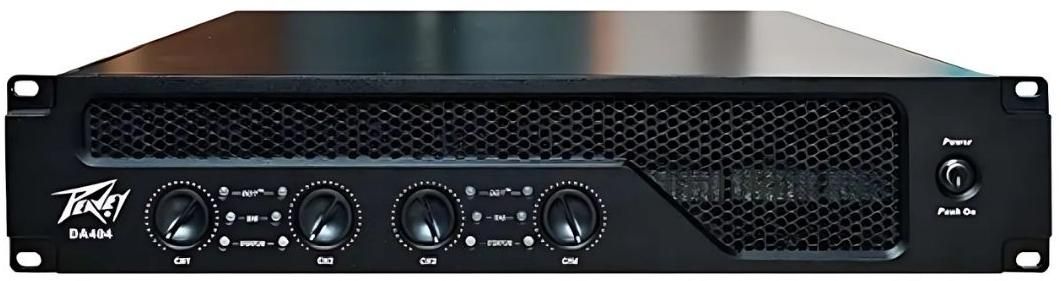

Sales Package | Peavey DA 404 Power Amplifier |
General | |
---|---|
Brand | Peavey |
Model | DA 404 |
Color | black |
Rated Power (per channel) | 4 × 2 ?: 1301 W @ 1 kHz 4 × 4 ?: 765 W @ 1 kHz 4 × 8 ?: 450 W @ 1 kHz |
Bridged Mode | 2 × 4 ?: 2601 W @ 1 kHz 2 × 8 ?: 1530 W @ 1 kHz 2 × 16 ?: 900 W @ 1 kHz |
Minimum Load Impedance | 2 ? |
RMS Output Voltage | 60 V (THD = 1%, 1 kHz) |
Frequency Response | 20 Hz – 20 kHz, +0 dB / –0.5 dB (at 10% rated output power, 8 ?) |
THD + Noise (THD+N) | < 0.01% (10% rated power, 1 kHz, 8 ?) |
Crosstalk Suppression | ? 90 dB (below rated power, 20 Hz–1 kHz) |
Damping Factor | > 5000 (8 ?, 20 Hz–200 Hz) |
Input Sensitivity | 35 dB, 32 dB, 29 dB, 26 dB |
Input Impedance | Balanced: 20 k? Unbalanced: 10 k? |
Signal-to-Noise Ratio (SNR) | > –105 dB, A-weighted (at 8 ?) |
LED Display Indicators | DDT™ / clipping, signal indication, status indicator |
Protection Features | Undervoltage protection Output DC protection Overheating protection Temperature control Overload protection |
Power Requirements | 90–260 VAC, 50/60 Hz |
Dimension | |
---|---|
Dimension | 8.8 cm × 48.3 cm × 37.0 cm |
Weight | 12 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
