IN THE BOX | |
---|---|

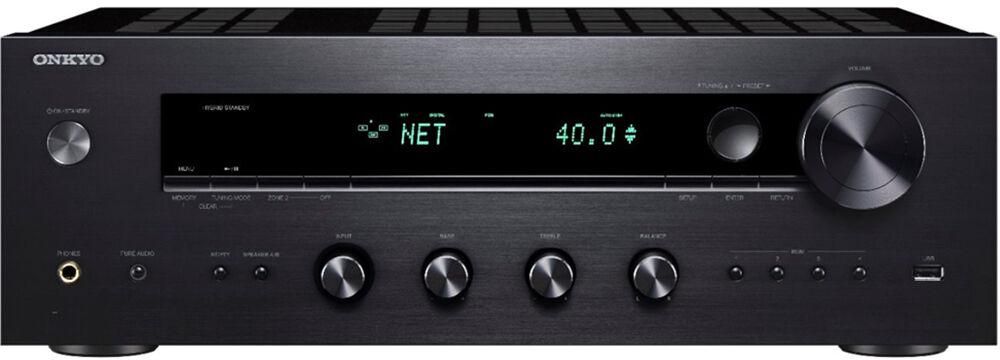

Sales Package | Onkyo TX-8470 Stereo Network A/V Receiver |
General | |
---|---|
Brand | Onkyo |
Model | TX-8470 |
Color | black |
Channels | 2.0 |
Amplifier Class | Class-G |
Power Output per Channel | 2-Channel Driven: 110 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD (RMS) |
Frequency Response | 20 Hz to 20 kHz |
DAC | 768 kHz / 32-Bit |
Rear A/V Inputs | 4x HDMI 2x Optical TOSLINK 1x Digital Coaxial 3x Stereo RCA 1x Stereo RCA (Phono MC/MM) with Ground Screw |
Rear A/V Outputs | 1x HDMI 1x Stereo RCA Pre-Out 1x Stereo RCA Zone 2 Pre-/Line-Out |
Front I/O | 1x 1/4" / 6.35 mm Headphone Output 1x USB-A Input/Output |
Other Rear I/O | 1x AM Block Input 1x FM Coaxial F-Type Input 1x RJ45 (Ethernet) Input/Output 1x USB-A Input/Output |
Speaker I/O | 2x Binding Post Pairs |
Input Power | 120 VAC, 60 Hz |
Dimension | |
---|---|
Dimension | 435.0 x 150.0 x 329.0 mm |
Weight |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
