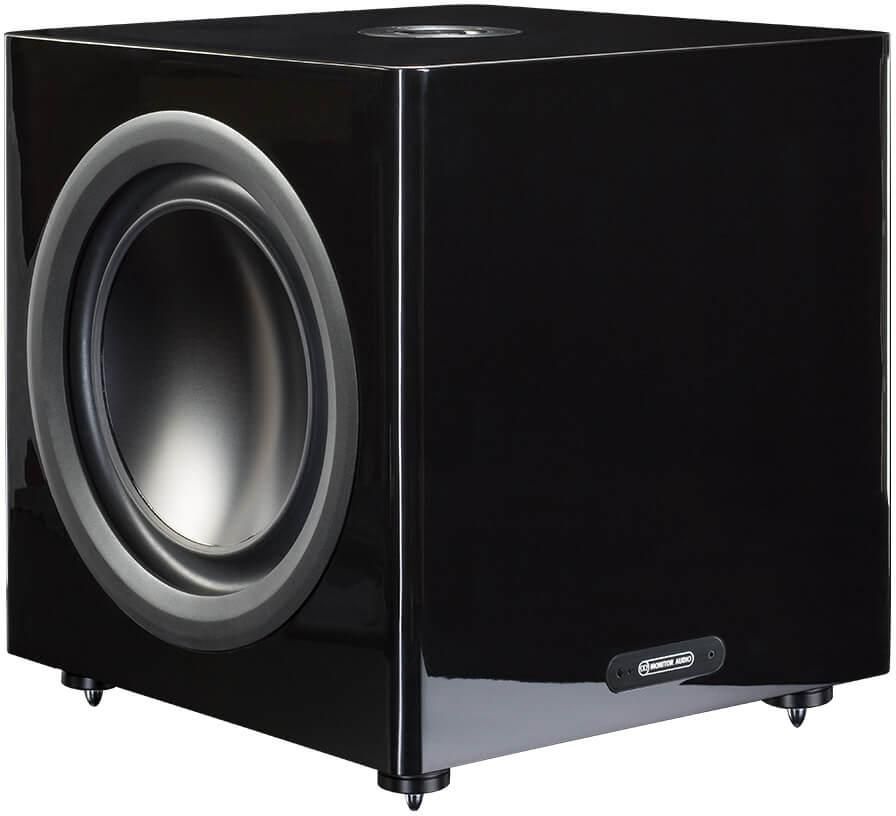

Monitor Audio Platinum PLW215 II Subwoofer

MODEL: Platinum PLW215 II
WARRANTY: Official Manufacturer Warranty
black Monitor Audio Platinum PLW215 II Subwoofer color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
Offer Price Valid For Limited Time
Price: ₹ 549999.00
Today's Price:
Rs.549999 (inclusive of all taxes) Free Delivery
return logo Easy
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery
original stamp icon
offer icon

More Offers

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Twin 15" C-CAM drivers, triple-suspended for a full 4cm of excursion
  • A dedicated DSP-controlled amplifier powers each driver
  • SubConnect software: adjust in-room response using top panel dial or laptop.
  • 4 user presets per input, including preset Flat/Music/Movie/Impact modes.
  • Night Mode: actively reduces dynamic range of louder sections to desired level.
  • High current Switch mode power supply (SMPSU).
  • 12v trigger in (3.5 mm mono mini-jack, 6v threshold)
  • IR remote included, IR receiver on front panel.
  • 3.5 mm microphone input jack, microphone included.
Sales Package Subwoofer and User Documentation
ModelPlatinum PLW215 II
System Format
Sealed Cabinet with vibration cancelling driver configuration, 25 mm M.D.F. construction with internal bracing and sealed amplifier compartment
Lower Frequency Limit
-3 dB @ 23 Hz / -10 dB @ 18 Hz (Free Field) default preset: Music, -3 dB @ 19 Hz / -10 dB @ 16 Hz (In Room) default preset: Music, Limited by low frequency protection filter (-3 dB @ 12 Hz)
Upper Frequency Limit
-3 dB @ 150 Hz
Drive Unit Complement
2 x 15" C-CAM sub-woofer drivers featuring inverted surround and triple suspension for increase support at high excursions.
Black single layer edge wound 3" voice coil with vented pole, vented coil and black CED coated motor unit to reduce power compression and increase thermal dissipation.
FEA optimised cone, magnetics and suspensions for optimal performance and increased linearity
Linear Driver Excursion
42 mm Peak to Peak,
Total displacement 6.4 Litres
Amplifier Output
Dual Amplifier design with a single amplifier powering each driver,
Combined 1400 W RMS, 2000 W Peak (Burst Ratio 1:4 Continuous,
Measured into two non-reactive 4 Ohm Loads)
Amplifier Classification
2x Class-D amplifiers, Balanced Differential Input, Differentially loaded Power Supply, DSP controlled. High current Switch mode power supply (SMPSU)
172 MHz DSP Core with 3500 instructions per sample, 139 dB of dynamic range and 56-bit double precision processing, dynamically updated by an 80 MHz MCU
Digital Conversion
Wolfson Microelectronics (Cirrus Logic) ADC & DAC @ 24bit/48KHz. (WM8786 ADC & WM8740 DAC)
Phase Control
0-360 degrees, Increments of 15 degrees with a pure invert at 180 degrees
Low Pass Filter Alignment
2nd or 4th order (12 or 24 dB/Octave), Increments of 5 Hz from 35 Hz to 135 Hz
Auto Sensing Input Requirements
Line Level >1mV on unbalanced and balanced inputs. Auto Standby feature, adjustable between 5-240 minutes in increments of 5mins
Digital Volume Level
-11 to +11 dB in 1 dB increments, Via the control panel. -80 to +20 in 1 dB increments, via SubConnect application
IR Remote Control Code
Supplied IR remote. Front facing IR receiver with red LED response. Additional discrete IR codes for automation available in the manual
12v Trigger in (3.5mm mono mini-jack, 6v threshold), assignable to On/Off or Preset change, 3.5mm Microphone input jack (mic supplied), RJ45 connector supporting RS232 (EIA/TIA - 561, Tx Pin 6, Rx Pin 5, Gnd Pin 4), IR repeater – Output (3.5mm mono mini-jack), USB – Type B, for connecting to SubConnect PC application and Firmware update
Mains Input Voltage
110 – 120 Vac / 220 – 240 Vac 50/60 Hz (Manually selected)
Power Consumption
Maximum 1200 W, Standby <0.5 W (ErP compliance)
Dimension500 x 504 x 512.5 mm
Weight57.54 kg
Warranty TypeOfficial Manufacturer Warranty
