IN THE BOX | |
---|---|

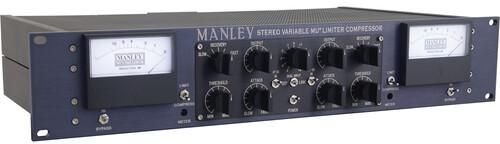

Sales Package | Manley STEREO VARIABLE MU® LIMITER COMPRESSOR |
General | |
---|---|
Brand | Manley Labs |
Model | STEREO VARIABLE MU |
Color | black |
Number of Channels | 2 |
Inputs | 2 x XLR transformer balanced (600 ?) |
Outputs | 2 x XLR transformer balanced (600 ?) |
Input Level | Input Level Switch: -8, -4, -2, -1, 0, +1, +2, +4, and +8 dB |
Compression Threshold | Continuously variable threshold for compression and limiting |
Ratio | Compressor: 1.5:1 Limiter: 4:1 to 20:1 |
Attack Time | Variable Attack: 25 to 70 ms |
Release Time | Recovery 5 Steps: 0.2, 0.4, 0.6, 4.0, 8.0 sec |
Maximum Output Level | +30 dBu (26 Vrms) 26 dB Headroom |
Make-up Gain | +35 dB |
Frequency Response | 20 Hz to 25 kHz |
THD & Noise | <0.1% THD @ 1 kHz Noise Floor: -85 dB typical |
Tubes per Side | Fully Differential All-Tube Circuitry: 5670, 5751 (or 12AX7), 7044 (or 5687), & 12AL5 |
High Pass Filter | HP SC: High Pass Side Chain Filter: -1 to -3 dB @ 100 Hz -4 to -6 dB @ 50 Hz |
Rackmountable | 2 U |
Power Supply | 120 VAC, 80 W, 60 Hz |
Fuse | Mains Fuse Value: 1.25 A Mains Fuse Type: MDA or MDL SLO-BLO Time Delay: 1-1/4" x 1/4" |
Dimension | |
---|---|
Dimension | 48.3 x 8.9 x 25.4 cm |
Weight | 6.4 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
