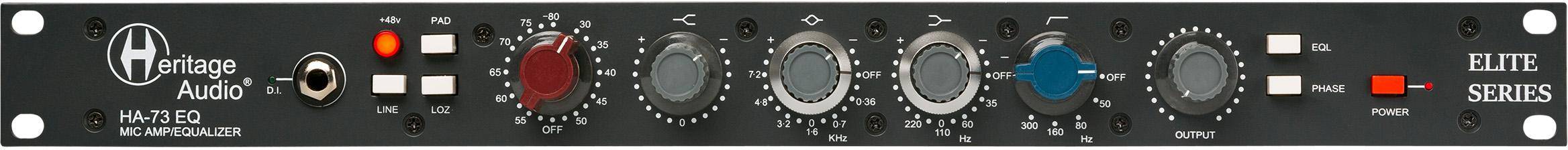

  3. Heritage Audio HA73EQ Elite Microphone Preamp & EQ
▲
Heritage Audio HA73EQ Elite Microphone Preamp & EQ image
Heritage Audio HA73EQ Elite Microphone Preamp & EQ image
Heritage Audio HA73EQ Elite Microphone Preamp & EQ image
Heritage Audio HA73EQ Elite Microphone Preamp & EQ image
▲
Heritage Audio HA73EQ Elite Microphone Preamp & EQ zoom image
Heritage Audio HA73EQ Elite Microphone Preamp & EQ zoom image

Heritage Audio HA73EQ Elite Microphone Preamp & EQ

BRAND: Heritage-Audio
|
MODEL: HA73EQ Elite
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Heritage Audio HA73EQ Elite Microphone Preamp & EQ color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 117464.00
Today's Price: ₹
Price : Rs. 117464.00 9% off
Rs.105718 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Switchable mic input impedance for better mic matching
  • +48 V phantom power, polarity reverse, and -20 dB pad
  • High-pass filter to reduce low-frequency rumble
  • Built-in three-band classic EQ with musical curves
  • Selectable low-shelf, mid-band, and high-shelf EQ frequencies
  • EQ bypass for instant A/B comparison
  • High-impedance DI input for guitar and bass
IN THE BOX
Sales Package Heritage Audio HA73EQ Elite Microphone Preamp & EQ
General
BrandHeritage-Audio
ModelHA73EQ Elite
Colorblack
Microphone input impedance: HI=1200 ? minimum, LO=300 ? minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10 k? bridging, transformer balanced and floating
Output impedance: Less than 75 ?, transformer balanced and floating, to drive a load of 600 ?.
Maximum output:

Greater than +26.5 dBu into 600 ? (internally terminated).
THD:

Less than 0.025 % at 1 kHz, Less than 0,05 % at 100 Hz.
Frequency response:

20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) – EQ Off.
Maximum Gain:

Slightly greater than 80 dB.
Equivalent Input Noise: Less than -125 dBu
Output stage noise: Less than -100 dBu.
Power consumption:
Less than 95 mA @48 V DC.
Dimension
Dimension57.0 x 33.0 x 9.0 cm
Weight3.2kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
