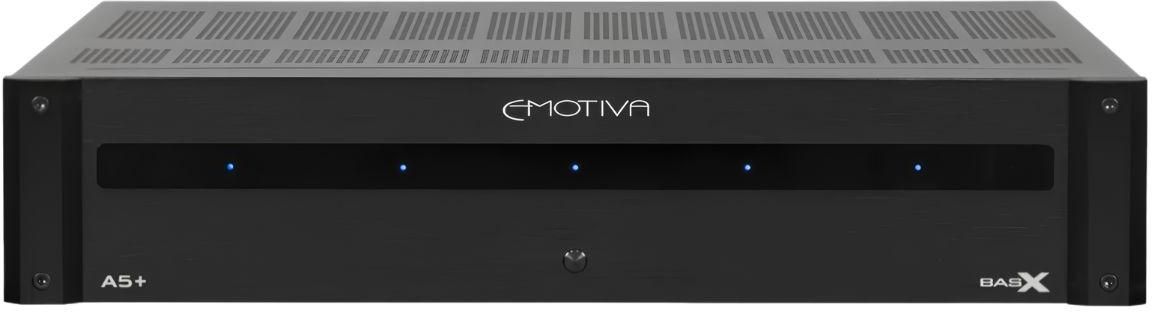

Emotiva BasX A5 Plus Five-Channel Power Amplifier

BRAND: Emotiva
|
MODEL: BasX A5 Plus
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Emotiva BasX A5 Plus Five-Channel Power Amplifier color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 110500.00
Today's Price: ₹
Rs.110500 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • Five-channel Class A/B amplifier design
  • 95W per channel into 8?
  • 130W per channel into 4?
  • Heavy-duty linear power supply
  • Oversized toroidal power transformer
  • Low distortion, high-fidelity audio
IN THE BOX
Sales Package Emotiva BasX A5 Plus Five-Channel Power Amplifier
General
BrandEmotiva
ModelBasX A5 Plus
Colorblack
Power Output Per Channel; ALL channels driven
95 watts RMS / channel; 20 Hz - 20 kHz; THD < 0.02%; into 8 Ohms
130 watts RMS / channel; 1 kHz; THD <1%; into 4 Ohms
Input Sensitivity(for rated power; 8 Ohm load) : 1.2 V
Gain29 dB
Power Bandwidth(at rated power; 8 Ohm load) : 20 Hz to 20 kHz (+ / - 0.07 dB) or better.
Broad Band Frequency Response5 Hz to 80 kHz (+ 0 / - 1.8 dB)
THD+Noise< 0.02% (A-weighted); at rated power; 1 kHz; 8 Ohms.
Signal To Nosie Ratio
(8 ohm load)
> 112 dB or better; referenced to rated power (A-weighted)
> 95 dB; referenced to 1 watt (A-weighted)
Load Impedance
Minimum Load Impedance: 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads.

Rated Load Impedance: 8 Ohms.
Damping Factor8Ohmm Load >500
Speaker Output ConnectionsAudiophile grade 5-way binding posts
Power SupplyLinear power supply with heavy duty toroidal transformer
Input Connections
Unbalanced (RCA); one each per channel

Balanced (XLR); one each per channel
Input Impedance27 kOhms
Trigger
Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirement115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
ProtectionThe BASX Plus Series amplifier is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Dimension
Dimension432mm × 108mm × 394mm
Weight12.02 kg
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
