IN THE BOX | |
---|---|

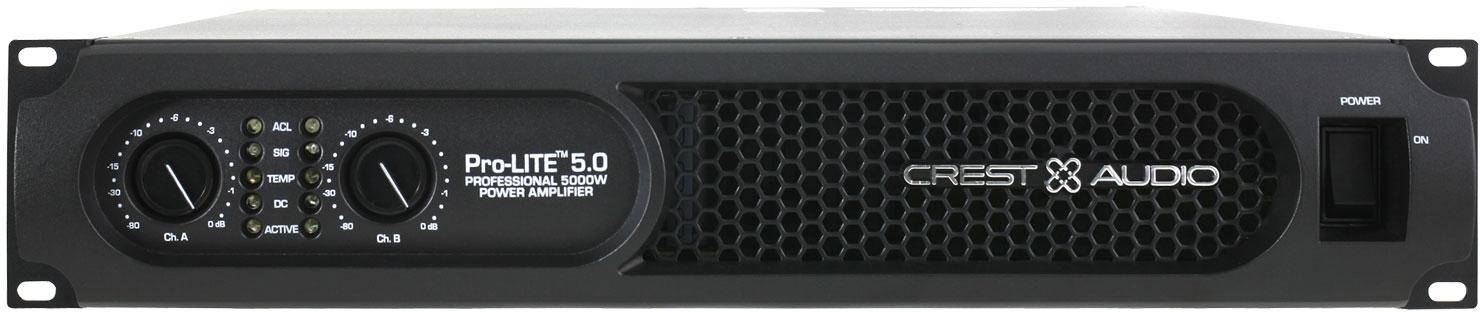

Sales Package | Crest Pro-LITE 5.0 Power Amplifier |
General | |
---|---|
Brand | Crest audio |
Model | Pro-LITE 5.0 |
Color | black |
Rated Watts 2ch x 2 ohms | 3300 watts 20ms repetitive burst / 2600 watts 1% THD both channels driven @ 1kHz. |
Rated Watts 2ch x 4 ohms | 2025 watts 20ms repetitive burst / 1725 watts 1% THD / 1500 watts 0.2% THD, both channels driven @ 1kHz |
Rated Watts 2ch x 8 ohms | 1175 watts 20ms repetitive burst / 1000 watts 1% THD / 825 watts 0.2% THD, both channels driven @ 1kHz |
Minimum Load Impedance | 2 ohms |
Maximum RMS Voltage Swing | 105 volts |
Frequency Response | 20 Hz - 22kHz; +/- 0.5dB at 1 watt |
20Hz - 20kHz 2 ch x 2 ohms | <0.5% @ 2250 watts 20Hz to 4kHz, decreasing to 1650 watts @ 20kHz, both channels driven |
20Hz - 20kHz 2 ch x 4 ohms | <0.15% @ 1400 watts 20Hz to 10kHz, decreasing to 1350 watts @ 20kHz both channels driven |
20Hz - 20kHz 2 ch x 8 ohms | <0.15% @ 860 watts 20Hz to 4kHz, both channels driven |
Input CMRR | < -75 dB at 1kHz |
Voltage Gain | x 40 (+32.0 dB) |
Input Sensitivity | 1.95V +/- 3% for 1kHz 4 ohm rated power, 1.83V +/- 3% for 1kHz 2 ohm rated power |
Input Impedance | 20 kilohms, balanced and 10 kilohms unbalanced |
Current Draw @ 1/8 in VA (watts) | 1435 (890) @ 2 ohms, 920 (525) @ 4 ohms 625 (335) @ 8 ohms |
Current Draw @ 1/3 in VA (watts) | 3050 (2155) @ 2 ohms, 1880 (1200) @ 4 ohms 1200 (715) @ 8 ohms |
Dimension | |
---|---|
Dimension | 3.5” x 19” x 17.25” |
Weight | 6.2 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
