IN THE BOX | |
---|---|
Sales Package | (1) 2-pin Euroblock connector (1) 4-pin Euroblock connector (2) I-Share jumpers (10) terminal forks, 14–16 AWG (5) 3-pin Euroblock connectors (1) IEC power cord (1) installation guide (1) PowerSpace P4150+ |
General | |
---|---|
Brand | BOSE |

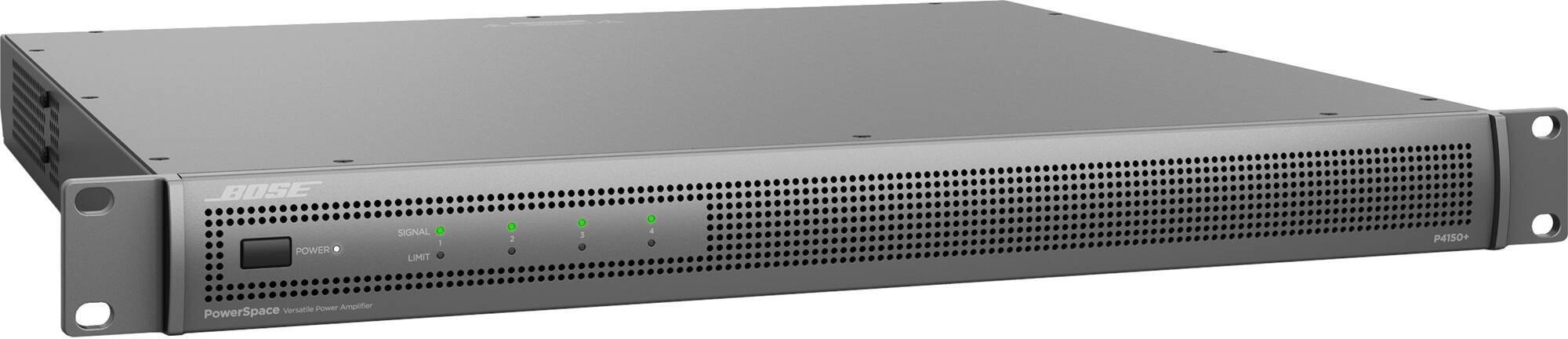

Model | P4150 Plus |
Color | black |
Channel Separation (Crosstalk) | > 80 dB at 1 kHz, > 65 dB at 20 kHz |
Dynamic Range | ? 100 dB at rated power, A-weighted |
Gain, High-Impedance | 35 dB, 70V mode / 38 dB, 100V mode |
Gain, Low-Impedance | 29 dB |
Maximum Peak Power, Symmetrical | 300 W |
Frequency Response | 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 ? / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V |
Number of Channels | 4 |
Rated Power, Symmetrical | 150 W |
THD+N | < 0.04% at 1 kHz, 4–8 ?, 70V/100V |
Input Channels | 4 balanced, 2 unbalanced |
Connectors | (3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs |
Input Impedance | 10 k? |
Maximum Input Level | 22 dBu at 14 dBu sensitivity |
Sensitivity | -10 dBV, 4 dBu, 14 dBu |
Channels | 6 (4 loudspeaker + 2 auxiliary) |
Connectors | (1) 8-terminal block, (1) 3-pin Euroblock, line |
Mains Connector | IEC C14 inlet |
Mains Voltage | 100–240 VAC (±10%), 50/60 Hz |
AC Power Consumption | 25 W auto-standby, 325 W maximum |
Controls, Front Panel | (1) power LED, (1) input signal LED, (1) output limit LED |
Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
Dimension | |
---|---|
Dimension | 44 mm × 483 mm × 420 mm |
Weight | 6.6 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 5 year |
