IN THE BOX | |
---|---|

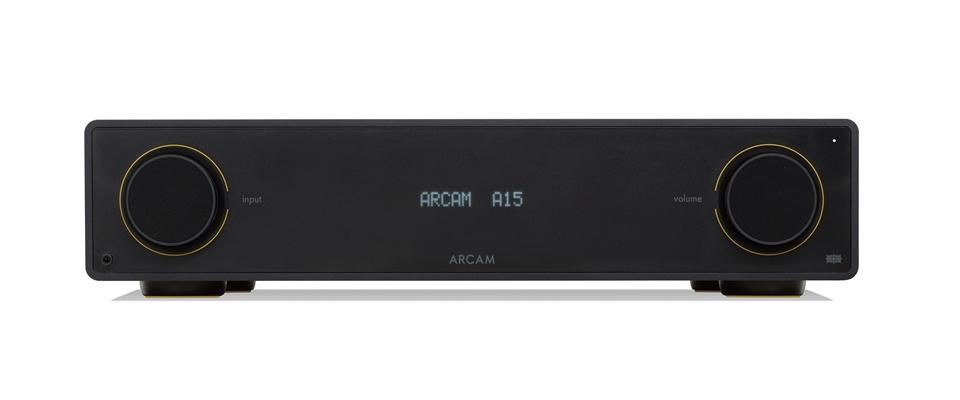

Sales Package | Arcam A15 Integrated Amplifier |
General | |
---|---|
Brand | Arcam |
Model | A15 |
Color | black |
Continuous power output (0.5% THD), per channel | 2 channels driven, 20Hz - 20kHz, 8? 80W 2 channels driven, 1kHz, 4? 120W Harmonic distortion, 80% power, 8? at 1kHz 0.002% |
Analogue Inputs | Number of inputs 3 (RCA pairs) Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB |
Phono (MM) Input | Input impedance 47k? + 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
Digital Inputs | Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1 |
Bit depths (bit) 24, 16 | Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB |
Headphone Output | Maximum output level (RMS) into 32?/300? 2.5V/5Vrms Load range 16? - 2k? |
Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
Power consumption (maximum) | 500W |
Power consumption (standby) | <0.5W |
Dimension | |
---|---|
Dimension | 431 x 344 x 98mm |
Weight | 10kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
