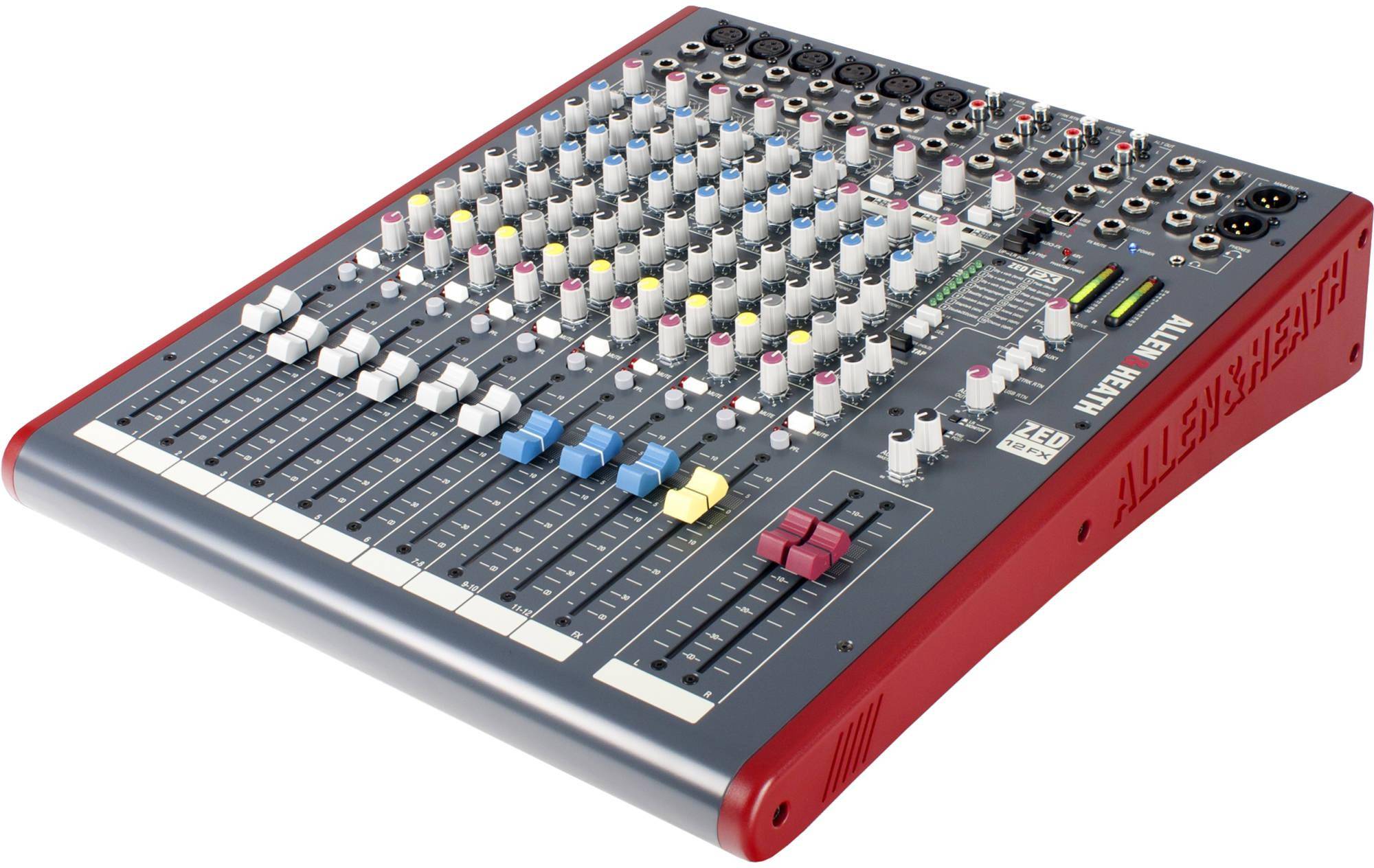

  3. Allen Heath ZED-12FX 12-Channel Mixer with USB Interface
▲
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface image
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface image
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface image
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface image
▲
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface zoom image
Allen Heath ZED-12FX 12-Channel Mixer with USB Interface zoom image

Allen Heath ZED-12FX 12-Channel Mixer with USB Interface

BRAND: Allen-Heath
|
MODEL: ZED-12FX
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black Allen Heath ZED-12FX 12-Channel Mixer with USB Interface color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 60000.00
Today's Price: ₹
Rs.60000 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 12 input channels: 4 mono and 4 stereo channels
  • Built-in 2-in/2-out USB audio interface
  • 16 built-in effects (reverb, delay, modulation)
  • 3-band EQ with sweepable mids for mono channels
  • Professional-grade, low-noise preamps
  • +48V phantom power for condenser mics
  • Channel inserts for external processing
  • Mute, solo, and pan controls for each channel
IN THE BOX
Sales Package
Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
USB Cable
Power Cable
General
BrandAllen-Heath
ModelZED-12FX
Colorblack
Max I/O Capacity
12x Input / 6x Output
Number of Analog Input Channels
12
Number of Mic Preamps
6
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
1x Stereo ALT Master Output
3x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Aux Bus/Subgroup / FX Bus
Faders & Level Adjustment
12x 3.9" / 100 mm Channel Fader
Gain/Trim Range
Mic:
-6 ±69 dB
1/4" Line:
-10 dB ±26 dB
EQ
3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
EQ Parameters
High: ±15 dB at 12 kHz
Mid: ±15 dB at 120 Hz to 4 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1x High-Pass: 100 Hz, 12 dB/Octave
Built-In Effects
3x Delay
6x Reverb
3x Delay+Reverb
1x Stereo Expander
1x Chorus
1x Flanger
Sample Rates
AD/DA Conversion:
32 / 44.1 / 48 kHz
DSP:
48 kHz
Bit Depth
16-Bit
Frequency Response
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Mic Input to Main Output:
20 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level
XLR Input:
+17 dBu (Mono)
1/4" Line Input:
+30 dBu (Mono)
1/4" / RCA Input:
+10 dB (Stereo)
Noise Floor
Main Output:
-88 dBu (Master Level at Unity, Channel Levels at -?, 22 Hz to 22 kHz)
THD+N
Line Input to Main Output:
0.005% at Unity Gain (1 kHz)
Mic Input to Main Output:
0.004% at Unity Gain (1 kHz)
0.014% at +30 dB Gain (1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (1 kHz)
Analog Inputs
6x 1/4" TRS Balanced/Unbalanced Line Input
6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)
1x Stereo RCA Coaxial Return
6x 1/4" TRS Channel Insert
2x 1/4" TRS Main Insert
6x XLR 3-Pin Balanced Mic Input
Analog Outputs
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
1x Stereo RCA Tape Output
1x Stereo RCA Alt Output
2x 1/4" Aux Send (Pre-Fader)
1x 1/4" Aux Output (Post-Fader)
1x 1/4" FX Send (Post-Fader)
2x XLR 3-Pin Balanced Main Output
1x 1/4" Main/Mono-Summed Output (Post-Fader)
Phantom Power
+48 V, Selectable On/Off
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Dimension
Dimension38.6 x 46.5 x 9.9 cm
Weight6.5 kg
Warranty
Warranty TypeOfficial Manufacturer Warrnaty
Warranty Period1 year
